Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

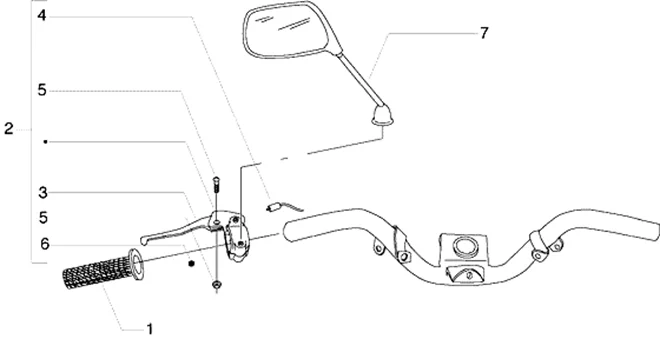

Guidon : T33 MANCHON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T33.PNG)
1 |
583093 - POIGNEE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/5/img/82315.jpg)
2 |
597894 - PORTE LEVIER GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/1/0/img/86710.jpg)
3 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" PIAGGIO 125 X8 STREET/GILERA 50 STALKER NACKED -647552- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
4 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
5 |
265249 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
6 |
LEFT BRAKE LEVER SPRING "PIAGGIO GENUINE PART" FOR ALL MODELS WITH DRUM BRAKE -267948- More informationQuantity required : 1 |
||||||
|
7 |
CM066002 - RETROVISEUR GAUCHE More informationQuantity required : 1 |
