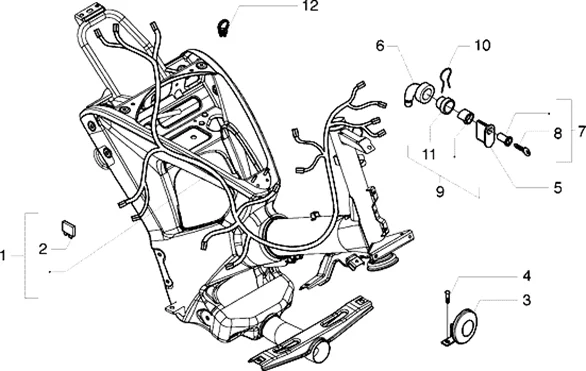

Connexions électriques : T38 FAISC. DE CÂBLES-COMMUTATEURS-AVERTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
2 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
3 |
CM071814 - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/2/img/67172.jpg)
3 |
HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R- More informationQuantity required : 1 |
||||||
|
3 |
CM071804 - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
4 |
969296 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
5 |
LOCK BODY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -1B002607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.JPG)
6 |
1D002436 - COMMUTATEUR A CLE More informationQuantity required : 1 |
||||||
|
6 |
1D002436 - COMMUTATEUR A CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.JPG)
7 |
576718 - GROUPE SERRURE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
|
8 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
9 |
LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
10 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
11 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
12 |
231590 - CLIPS More informationQuantity required : 1 |
