Vehicle Exploded View - APRILIA GULLIVER 50 H20 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

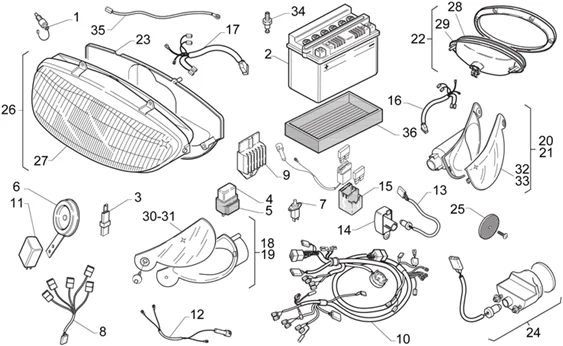

Chassis : 28.10 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/244/Gulliver_50_H20_1996-1998_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
2 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
3 |
DIODE "PIAGGIO GENUINE PART" 50 APRILIA 1998>2005, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8212382- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
4 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
5 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
6 |
58237R - HORN 12 V-CC More informationQuantity required : 1 |
||||||
|
7 |
AP8212696 - INTERR. ECLAIR.COFFRE More informationQuantity required : 1 |
||||||
|
9 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
11 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
12 |
AP8212670 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
13 |
AP8212652 - CABLAGE FEU DE COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/0/5/img/56305.jpg)
14 |
AP8212733 - GLACE LAMPE COFFRE More informationQuantity required : 1 |
||||||
|
15 |
AP8234094 - SUPPORT P-FUSIBLES; More informationQuantity required : 1 |
||||||
|
17 |
AP8212434 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
21 |
AP8212647 - CLIGNOTANT ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
24 |
AP8224196 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
|
25 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 1 |
||||||
|
26 |
AP8212821 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
30 |
AP8212787 - GLACE CLIGN. AV D; More informationQuantity required : 1 |
||||||
|
31 |
AP8212788 - GLACE CLIGN. AV G; More informationQuantity required : 1 |
||||||
|
32 |
AP8212789 - VITRE CLIGNOTANT DTE; More informationQuantity required : 1 |
||||||
|
33 |
AP8212647 - CLIGNOTANT ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
34 |
AP8212708 - THERMISTOR More informationQuantity required : 1 |
||||||
|
36 |
AP8230535 - BO?TIER BATTERIE More informationQuantity required : 1 |
