Vehicle Exploded View - APRILIA GULLIVER 50 H20 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

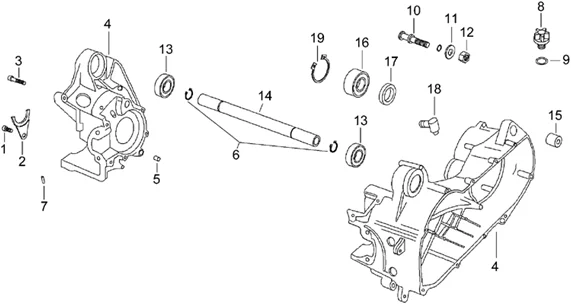

Moteur : 29.17 CARTERS CENTRAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/244/Gulliver_50_H20_1996-1998_29.17.PNG)
1 |
AP8206202 - VIS More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/7/img/55687.jpg)
2 |
AP8206138 - PLAQUETTE FIXATION JOINT SPY More informationQuantity required : 0 |
||||||
|
3 |
AP8502567 - VIS More informationQuantity required : 0 |
||||||
|
4 |
Carter - couple |
||||||
|
5 |
AP8206169 - GOUPILLE CARTER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/4/1/img/55741.jpg)
6 |
AP8206233 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 0 |
||||||
|
7 |
AP8206578 - ROULEAU More informationQuantity required : 0 |
||||||
|
8 |
AP8206475 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 0 |
||||||
|
9 |
AP8206482 - JOINT TORIQUE More informationQuantity required : 0 |
||||||
|
10 |
AP8206171 - PIVOT POUR SABOTS FREIN More informationQuantity required : 0 |
||||||
|
11 |
AP8502471 - RONDELLE ELASTIQUE More informationQuantity required : 0 |
||||||
|
12 |
AP8502437 - ECROU More informationQuantity required : 0 |
||||||
|
13 |
AP8206481 - ROULEMENT ETANCHE More informationQuantity required : 0 |
||||||
|
14 |
AP8206503 - ENTRETOISE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/1/img/55681.jpg)
15 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SONIC, SR, GULLIVER, AMICO, SCARABEO -AP8206129- More informationQuantity required : 0 |
||||||
|
16 |
AP8206558 - ROULEMENT More informationQuantity required : 0 |
||||||
|
17 |
AP8206215 - JOINT SPI More informationQuantity required : 0 |
||||||
|
18 |
AP8206131 - RACCORD+TUBE RENIF. More informationQuantity required : 0 |
||||||
|
19 |
AP8501481 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 0 |
