Vehicle Exploded View - APRILIA GULLIVER 50 H20 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

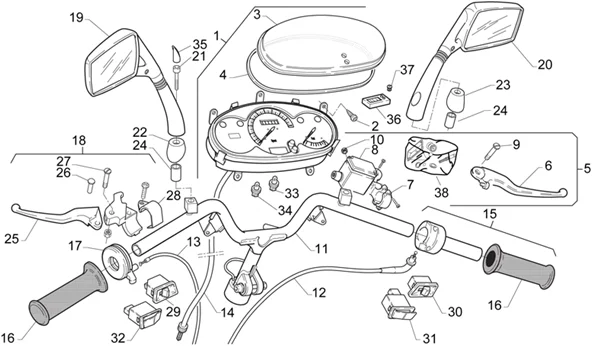

Chassis : 28.06 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/244/Gulliver_50_H20_1996-1998_28.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
2 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 5 |
||||||
3 |
AP8212809 - VITRE TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
4 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/5/1/img/56651.jpg)
6 |
AP8218288 - LEVIER FREIN AVANT; More informationQuantity required : 1 |
||||||
|
7 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
8 |
AP8213272 - COUVERCLE RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
9 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
10 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
11 |
AP8218165 - GUIDON PEINT; More informationQuantity required : 1 |
||||||
|
12 |
AP8214160 - CABLE GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/3/img/56553.jpg)
13 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SR -AP8214159- More informationQuantity required : 1 |
||||||
|
15 |
AP8218252 - COMMANDE GAZ+POIGNEE GRISE; More informationQuantity required : 1 |
||||||
|
16 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
17 |
CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529- More informationQuantity required : 1 |
||||||
|
18 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
19 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
20 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201975- More informationQuantity required : 1 |
||||||
|
21 |
AP8152073 - VIS More informationQuantity required : 2 |
||||||
|
23 |
AP8220430 - BASE RETROVISEUR D; More informationQuantity required : 1 |
||||||
|
24 |
AP8221235 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
25 |
BRAKE LEVER "PIAGGIO GENUINE PART" APRILIA 50 SR 1996>1999 AR -AP8218274- More informationQuantity required : 1 |
||||||
|
28 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
29 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8215767- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
31 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124208- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
32 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124209- More informationQuantity required : 1 |
||||||
|
33 |
AP8212407 - PORTE-AMPOULE COMPLET More informationQuantity required : 1 |
||||||
|
34 |
AP8212408 - PORTE-AMPOULE COMPLET More informationQuantity required : 1 |
||||||
|
35 |
AP8202071 - BOUCHON RETRO DTE+GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
36 |
DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406- More informationQuantity required : 1 |
||||||
|
37 |
AP8212405 - CAOUTCHOUC HORLOGE More informationQuantity required : 1 |
