Vehicle Exploded View - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

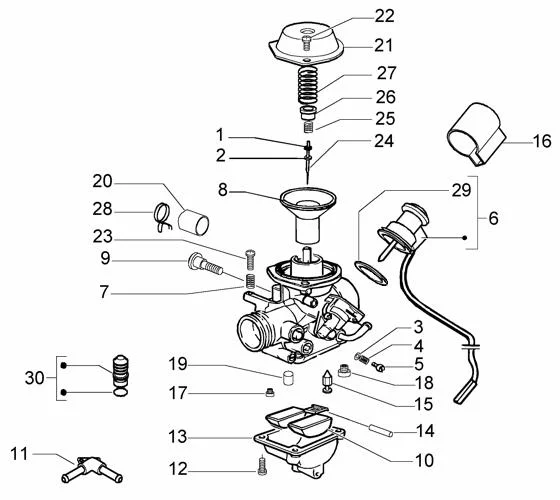

Moteur : T19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T19.PNG)
1 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
2 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402- More informationQuantity required : 1 |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO More informationQuantity required : 1 |
||||||
|
6 |
CM142903 - STARTER More informationQuantity required : 1 |
||||||
|
7 |
826825 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/2/img/73172.jpg)
8 |
SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X-EVO 2007>, X9 2003>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> ALUMINIUM WITH FLAT SPOT FOR KEIHIN CARB -CM140301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
8 |
SLIDE FOR WALBRO CARB "PIAGGIO GENUINE PART" 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701- More informationQuantity required : 1 |
||||||
|
9 |
826826 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -826812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -842522- More informationQuantity required : 1 |
||||||
|
11 |
828742 - RECHAFFEUR More informationQuantity required : 1 |
||||||
|
11 |
842516 - KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
|
12 |
826770 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/2/img/69242.jpg)
13 |
CARB FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 125-250 CC -842523- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
15 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102- More informationQuantity required : 1 |
||||||
|
15 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
826866 - COUVERCLE More informationQuantity required : 1 |
||||||
|
16 |
CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844- More informationQuantity required : 1 |
||||||
|
17 |
CM105303 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
17 |
CM140102 - GICLEUR MIN 38 More informationQuantity required : 1 |
||||||
|
18 |
CM105410 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
18 |
CM129902 - GIGLER MAXI 92 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
20 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/8/img/70668.jpg)
21 |
GAS VALVE COVER "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125-250 CC -877764- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/4/img/68674.jpg)
21 |
GAS VALVE COVER "PIAGGIO GENUINE PART" 8769925 125 CC 1998>2005 -827467- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
22 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780- More informationQuantity required : 5 |
||||||
|
23 |
826824 - VIS More informationQuantity required : 1 |
||||||
|
24 |
CM106506 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
24 |
CM140201 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
27 |
CM107902 - RESSORT SOUPAPE M20-180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
28 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.JPG)
29 |
828843 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
31 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
