Vehicle Exploded View - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

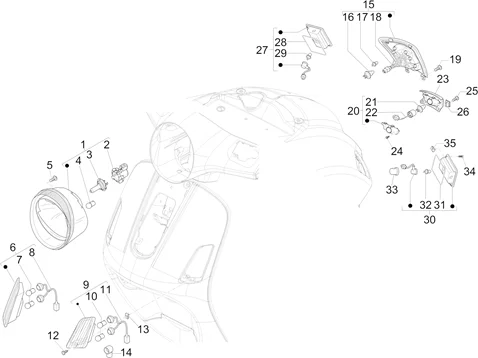

Connexions électriques : T41 FEUX AVANT-FEUX ARRIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/0/0/img/81800.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" 125-300 VESPA GTS -58267R- More informationQuantity required : 1 |
||||||
1 |
584479 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
2 |
253327 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
4 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
5 |
SCREW - (L35MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -296458- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/5/img/82135.jpg)
6 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -584970- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/4/img/67234.jpg)
7 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/7/3/img/81973.jpg)
8 |
CABLE BUNDLE FOR FRONT FLASHERS "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 VESPA GTS -583864- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/6/img/82136.jpg)
9 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -584971- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
10 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746- More informationQuantity required : 2 |
||||||
|
10 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904- More informationQuantity required : 2 |
||||||
|
11 |
CABLE BUNDLE FOR FRONT FLASHERS "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 VESPA GTS -583864- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
13 |
CM017406 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
14 |
250522 - CACHE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/0/4/img/85704.jpg)
15 |
TAILLIGHT- "PIAGGIO GENUINE PART" 125 VESPA GT -639181- More informationQuantity required : 1 |
||||||
|
15 |
583616 - FEU AR More informationQuantity required : 1 |
||||||
|
16 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/8/img/67198.jpg)
17 |
LIGHT BULB 12V-2,3W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581056- More informationQuantity required : 2 |
||||||
|
18 |
583841 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
19 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/5/0/img/85550.jpg)
20 |
TAILLIGHT- REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" 125 VESPA GT -638702- More informationQuantity required : 1 |
||||||
|
21 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
|
22 |
583812 - GROUPE CABLES More informationQuantity required : 1 |
||||||
|
23 |
6387010090 - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100EB - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100VC - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100F2 - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100BM - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100ND - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
63870100D9 - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
23 |
58497400BG - FEU AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/5/img/65445.jpg)
24 |
018603 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
25 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
26 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/7/img/82137.jpg)
27 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -584972- More informationQuantity required : 1 |
||||||
|
28 |
584679 - JOINT POUR TRANSPARENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
29 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/8/img/82138.jpg)
30 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -584973- More informationQuantity required : 1 |
||||||
|
31 |
584678 - JOINT POUR TRANSPARENT More informationQuantity required : 1 |
||||||
|
32 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
|
33 |
250522 - CACHE More informationQuantity required : 2 |
||||||
|
34 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 2 |
||||||
|
35 |
CM017406 - PLAQUETTE More informationQuantity required : 2 |
