Vehicle Exploded View - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

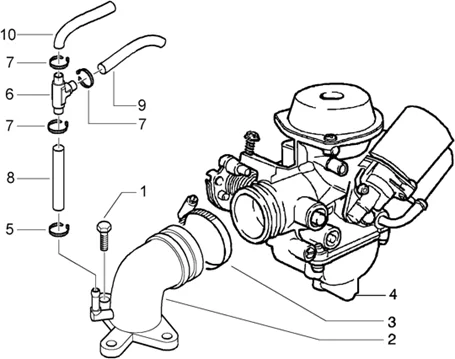

Moteur : T18 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
1 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
|
1 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
1 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/2/img/72712.jpg)
2 |
INTAKE MANIFOLD (2 BRASS UNIONS) "PIAGGIO GENUINE PART" 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO -B016579- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/6/img/66666.jpg)
2 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 125 BEVERLY, X9, HEXAGON/APRILIA 125-250 ATLANTIC 2003>2006/GILERA 125 RUNNER 4 STROKE -484748- More informationQuantity required : 1 |
||||||
|
2 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/6/img/152746.jpg)
2 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/3/1/img/92931.jpg)
2 |
INLET MANIFOLD (SINGLE BRASS UNION) "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2004 -840689- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
|
4 |
CARBURETTOR "PIAGGIO GENUINE PART" VESPA 200 GT -CM128201- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
5 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 1 |
||||||
|
6 |
CM142903 - STARTER More informationQuantity required : 1 |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO More informationQuantity required : 1 |
||||||
|
6 |
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA RSV4 1000 2009>2016, TUONO V4 1000 R 2011>2015/ PIAGGIO TYPHOON 125 4 STROKE 2011>2017, X9 125 1998>2005 -828325- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
7 |
CM002904 - COLLIER More informationQuantity required : 3 |
||||||
|
7 |
826825 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
8 |
DEPRESSION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -1R000158- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
8 |
SLIDE FOR WALBRO CARB "PIAGGIO GENUINE PART" 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/2/img/73172.jpg)
8 |
SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X-EVO 2007>, X9 2003>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> ALUMINIUM WITH FLAT SPOT FOR KEIHIN CARB -CM140301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/1/img/69281.jpg)
9 |
843400 - TUBE More informationQuantity required : 1 |
||||||
|
9 |
826826 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -842522- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -826812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
10 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432- More informationQuantity required : 1 |
||||||
|
11 |
842516 - KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
|
11 |
828742 - RECHAFFEUR More informationQuantity required : 1 |
||||||
|
12 |
826770 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/2/img/69242.jpg)
13 |
CARB FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 125-250 CC -842523- More informationQuantity required : 1 |
||||||
|
15 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
15 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102- More informationQuantity required : 1 |
||||||
|
16 |
CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844- More informationQuantity required : 1 |
||||||
|
16 |
826866 - COUVERCLE More informationQuantity required : 1 |
||||||
|
17 |
CM105303 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
17 |
CM140102 - GICLEUR MIN 38 More informationQuantity required : 1 |
||||||
|
18 |
CM105410 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
18 |
CM129902 - GIGLER MAXI 92 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
20 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/4/img/68674.jpg)
21 |
GAS VALVE COVER "PIAGGIO GENUINE PART" 8769925 125 CC 1998>2005 -827467- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/8/img/70668.jpg)
21 |
GAS VALVE COVER "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125-250 CC -877764- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
22 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780- More informationQuantity required : 5 |
||||||
|
23 |
826824 - VIS More informationQuantity required : 1 |
||||||
|
24 |
CM140201 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
24 |
CM106506 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
27 |
CM107902 - RESSORT SOUPAPE M20-180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
28 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.JPG)
29 |
828843 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
31 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
