Vehicle Exploded View - APRILIA EUROPA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

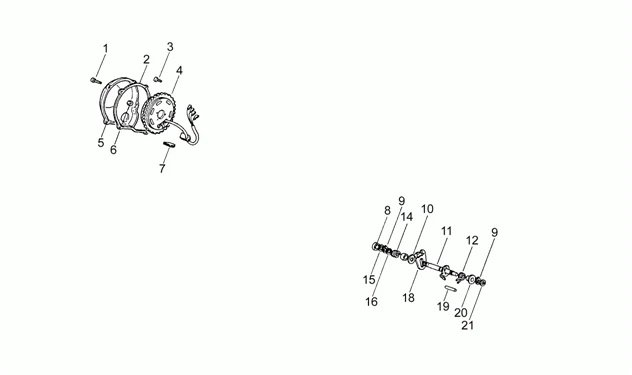

Moteur : 5 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/296/Europa_50_1991-1992_5.PNG)
1 |
AP8509211 - VIS More informationQuantity required : 5 |
||||||
|
2 |
AP8206293 - JOINT COUVERCLE VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/3/2/img/61032.jpg)
3 |
AP8502554 - VIS More informationQuantity required : 3 |
||||||
|
5 |
AP8276002 - COPERCHIO VOLANO V.GRIGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/8/4/img/61084.jpg)
6 |
NUT - FOR IGNITION FLYWHEEL "PIAGGIO GENUINE PART" APRILIA 50 AF1, EUROPA, TUONO, CLASSIC, PEGASO, RS, SX, RX 1993>1999 -AP8509891- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/4/img/61074.jpg)
8 |
AP8509178 - JOINT SPI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/1/4/img/55814.jpg)
9 |
AP8206358 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
10 |
AP8502520 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/9/5/img/55795.jpg)
11 |
GEARBOX SELECTOR SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RX 1991>1994, RS 1993>1995, PEGASO 1992>1994, EUROPA 1991>1992, CLASSIC 1992>1999, AF1 1991>1992 -AP8206319-- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/1/9/img/61019.jpg)
12 |
AP8502356 - RES. RAP. LEVIER VIT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/2/img/55802.jpg)
14 |
AP8206331 - RESS.RETOUR FOURCH. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/5/img/55765.jpg)
15 |
KICK STARTER SHAFT WASHER (12X17) "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, AF1, CLASSIC, EUROPA, TUONO -AP8206270- More informationQuantity required : 1 |
||||||
|
16 |
AP8206344 - RONDELLE ACIER BLEU More informationQuantity required : 1 |
||||||
|
18 |
AP8501972 - FOURCHETTE SELECTEUR + AXES More informationQuantity required : 1 |
||||||
|
20 |
AP8206332 - DOUILLE RESSORT SELECT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/4/img/55764.jpg)
21 |
BLUE STEEL WASHER (GEARBOX) (10X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50CC APRILIA -AP8206269- More informationQuantity required : 1 |
