Vehicle Exploded View - APRILIA EUROPA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 3 HUILE MIX

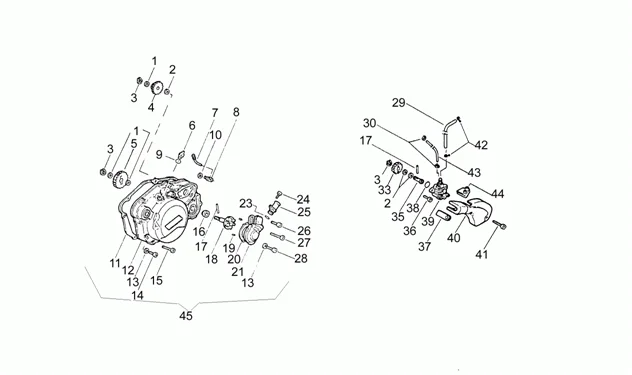

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/296/Europa_50_1991-1992_3.PNG)
1 |
AP8206345 - RONDELLE ACIER BLEU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/8/img/55768.jpg)
2 |
AP8206277 - RONDELLE ACIER BLEU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
3 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/9/9/img/55799.jpg)
4 |
AP8206327 - ENGR.DOUBLE INTERM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/0/img/55800.jpg)
5 |
AP8206328 - ENGRENAGE POMPE EAU MENE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/4/5/img/55745.jpg)
6 |
AP8206245 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/8/1/img/61081.jpg)
7 |
OIL PUMP CABLE GUIDE "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, MX, PEGASO, EUROPA, CLASSIC, AF1 -AP8509334- More informationQuantity required : 1 |
||||||
|
8 |
AP8206235 - PONT REGLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/5/0/img/61050.jpg)
10 |
OIL PLUG SEAL Ø8X14 "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, EUROPA, CLASSIC -AP8502759- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/7/6/img/55776.jpg)
11 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, AF1, CLASSIC, PEGASO 1993>2004 -AP8206287- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/9/img/61049.jpg)
13 |
AP8502758 - JOINT VIS HUILE More informationQuantity required : 2 |
||||||
|
15 |
AP8502566 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/1/img/61071.jpg)
16 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50/50 A BOITE 1995>2000 -AP8509130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/6/img/61066.JPG)
17 |
AP8508669 - ROULEAU More informationQuantity required : 2 |
||||||
|
18 |
AP8206335 - PIVOT POMPE EAU+ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/6/8/img/72168.jpg)
20 |
AP8206334 - JOINT CORPS POMPE EAU More informationQuantity required : 1 |
||||||
|
24 |
AP8206202 - VIS More informationQuantity required : 2 |
||||||
|
25 |
AP8206320 - MANCHON ARRIVEE POMPE More informationQuantity required : 1 |
||||||
|
26 |
AP8206508 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/3/7/img/61037.jpg)
27 |
AP8502571 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
30 |
AP8206711 - COLLIER More informationQuantity required : 2 |
||||||
|
33 |
AP8508872 - PIGNON DE POMPE More informationQuantity required : 1 |
||||||
|
35 |
AP8206299 - PIVOT MENANT TACHYMETRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/4/img/61064.jpg)
37 |
CABLE ADJUSTER RUBBER FOR OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, PEGASO, EUROPA, CLASSIC -AP8508667- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/4/img/61044.jpg)
38 |
AP8502665 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/7/img/61067.jpg)
39 |
OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, MX, RS, CLASSIC, EUROPA, PEGASO, AF1 1991>2002 -AP8508863- More informationQuantity required : 1 |
||||||
|
41 |
AP8206280 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/7/img/55807.jpg)
42 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, AF1, EUROPA, PEGASO -AP8206342- More informationQuantity required : 2 |
||||||
|
43 |
AP8206631 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/5/img/61065.jpg)
44 |
AP8508668 - CAOUTCHOUC TUYAUX HUILE More informationQuantity required : 1 |
