Vehicle Exploded View - APRILIA EUROPA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

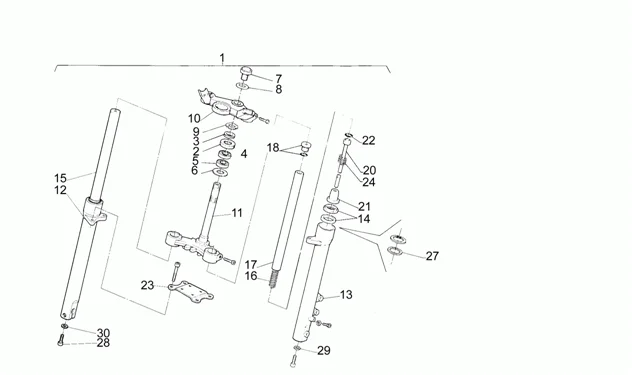

Chassis : 8 FOURCHE AV. N
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/296/Europa_50_1991-1992_8.PNG)
1 |
FORCELLA COMPLETA (PL) |
||||||
|
2 |
AP8120211 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
3 |
AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
4 |
STEERING COLUMN BEARING ( UPPER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110025- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
5 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
6 |
AP8101271 - ANNEAU RACLEUR INF. More informationQuantity required : 1 |
||||||
|
7 |
ECROU |
||||||
|
8 |
Rondelle fer plate |
||||||
|
9 |
AP8203588 - BAGUE INFERIEUR FOURCHE More informationQuantity required : 1 |
||||||
|
10 |
TE SUP. FOURCHE |
||||||
|
11 |
Rondelle; |
||||||
|
12 |
Tige+porte-roue D |
||||||
|
13 |
FOURREAU GAUCHE |
||||||
|
14 |
JOINT SPY |
||||||
|
15 |
FOURREAU DROIT |
||||||
|
16 |
RESSORT |
||||||
|
17 |
TUBE GAUCHE |
||||||
|
18 |
Bouchon |
||||||
|
20 |
ASTA POMPANTE (PL) |
||||||
|
21 |
Douille |
||||||
|
22 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/8/4/img/45284.jpg)
23 |
STIFFENING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS, AFI, TUONO, EUROPA -AP8103705- More informationQuantity required : 1 |
||||||
|
24 |
Ressort |
||||||
|
27 |
RONDELLE |
||||||
|
28 |
Vis |
||||||
|
29 |
|
||||||
|
30 |
|
