Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

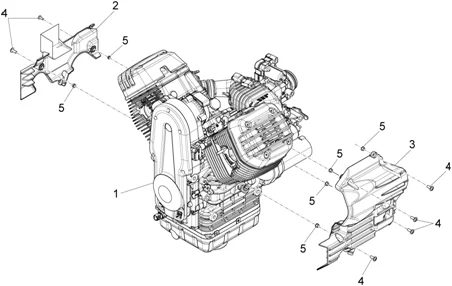

Moteur : 03.010 MOTEUR-GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_03.010.PNG)
1 |
9769965 - ASS. MOTORE LINEA 1400 X RIC. More informationQuantity required : 1 |
||||||
|
2 |
B063306 - COVER MOTORE LATO INF. DX More informationQuantity required : 1 |
||||||
|
3 |
B063143 - COPERCHIO MOTORINO AVVIAMENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/0/1/7/img/101017.jpg)
3 |
B06314300XNH - COPERCHIO MOTORINO AVVIAMENTO VERN More informationQuantity required : 1 |
||||||
|
4 |
GU98210616 - VIS BRIDE M6X16 More informationQuantity required : 6 |
||||||
|
5 |
GU91120606 - BAGUE 6,8X8,8X5,8 More informationQuantity required : 6 |
