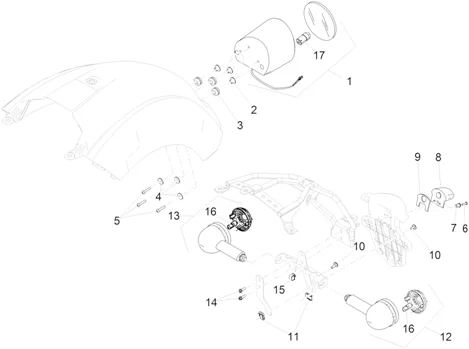

Feux - instruments : 08.030 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_08.030.PNG)
1 |
2D000179 - FEU ARRIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/7/4/img/57074.JPG)
2 |
AP8221341 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
3 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/2/img/132662.JPG)
4 |
GU95005304 - RONDELLE 6,4X13X1,5 More informationQuantity required : 3 |
|||||||||
|
5 |
GU98230525 - VIS M5X25 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.JPG)
6 |
AP8150522 - VITE TCB M4X16 INOX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
7 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
8 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R- More informationQuantity required : 1 |
|||||||||
|
9 |
AP8117258 - EPONGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
11 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 3 |
|||||||||
|
12 |
2D000166 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
|||||||||
|
13 |
2D000165 - CLIGNOTANT AV DROITE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
14 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
15 |
231590 - CLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
16 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 2 |
|||||||||
|
17 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
|||||||||
