Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

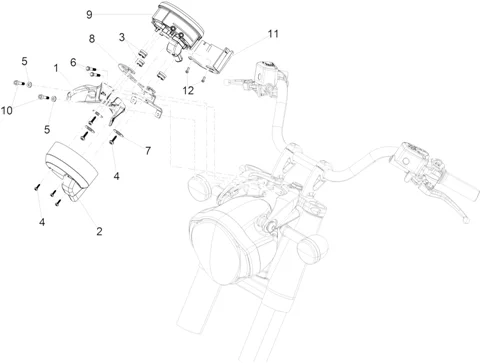

Feux - instruments : 08.020 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_08.020.PNG)
1 |
B063936 - COVER ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
2B001559 - COUVERCLE COMPTEUR CHROMÉ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/6/img/71776.jpg)
3 |
AP8144662 - JOINT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
AP8150382 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
7 |
AP8150382 - RONDELLE More informationQuantity required : 3 |
||||||
|
8 |
887555 - SUPPORTO CRUSCOTTO COMPLETO More informationQuantity required : 1 |
||||||
|
9 |
2D000248 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
10 |
895709 - VIS More informationQuantity required : 2 |
||||||
|
11 |
2B001645 - FERMETURE CARÈNE CHROMÉ More informationQuantity required : 1 |
||||||
|
12 |
2B001980 - VIS TB 2,5X6 TORX More informationQuantity required : 1 |
