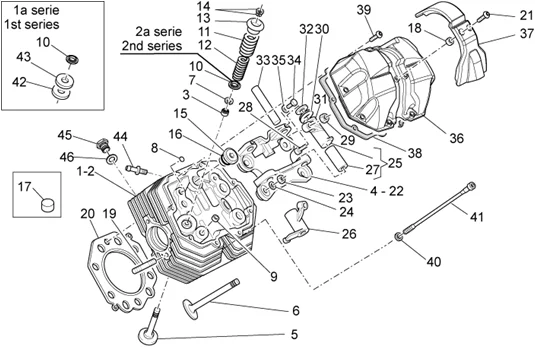

Vehicle Exploded View - MOTO-GUZZI BREVA 1200 2007 MOTO-GUZZI

Moteur : 34.42 CULASSE ET SOUPAPES II
Culasse et soupapes II
Search
9760794 - TESTA DX VERN TWIN SPARK (ERA 976079)

1
P2R reference P2R reference 99773
Maker reference Maker reference 9760794

9760794 - TESTA DX VERN TWIN SPARK (ERA 976079)

More information

Quantity required : 1
9760801 - TESTA SX VERN TWIN SPARK (ERA 976080)

2
P2R reference P2R reference 99774
Maker reference Maker reference 9760801

9760801 - TESTA SX VERN TWIN SPARK (ERA 976080)

More information

Quantity required : 1
976107 - PARAOLIO STELO VALVOLE D8

3
P2R reference P2R reference 99788
Maker reference Maker reference 976107

976107 - PARAOLIO STELO VALVOLE D8

More information

Quantity required : 4
976152 - SUPPORTO BILANCIERE DX CON PI

4
P2R reference P2R reference 99805
Maker reference Maker reference 976152

976152 - SUPPORTO BILANCIERE DX CON PI

More information

Quantity required : 1
GU05036131 - SOUPAPE D?ECHAPPEMENT

5
P2R reference P2R reference 128553
Maker reference Maker reference GU05036131

GU05036131 - SOUPAPE D?ECHAPPEMENT

More information

Quantity required : 2
GU05036030 - SOUPAPE D'ADMISSION

6
P2R reference P2R reference 128551
Maker reference Maker reference GU05036030

GU05036030 - SOUPAPE D'ADMISSION

More information

Quantity required : 2
GU90353016 - ANNEAU ELASTIQUE

7
P2R reference P2R reference 132152
Maker reference Maker reference GU90353016

GU90353016 - ANNEAU ELASTIQUE

More information

Quantity required : 4
O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202-

8
P2R reference P2R reference 111207
Maker reference Maker reference 224202

O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202-

More information

Quantity required : 4
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597-

9
P2R reference P2R reference 68552
Maker reference Maker reference 825597

JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597-

More information

Quantity required : 4
976181 - PIATTELLO INFERIORE

10
P2R reference P2R reference 99816
Maker reference Maker reference 976181

976181 - PIATTELLO INFERIORE

More information

Quantity required : 4
GU01037030 - PIATTELLO INF.

10
P2R reference P2R reference 101372
Maker reference Maker reference GU01037030

GU01037030 - PIATTELLO INF.

More information

Quantity required : 4
VALVE SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037405-

11
P2R reference P2R reference 131809
Maker reference Maker reference GU37037405

VALVE SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037405-

More information

Quantity required : 4
VALVE SPRING (INTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037605-

12
P2R reference P2R reference 131810
Maker reference Maker reference GU37037605

VALVE SPRING (INTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037605-

More information

Quantity required : 4
GU01038060 - PIATTELLO SUP.

13
P2R reference P2R reference 101373
Maker reference Maker reference GU01038060

GU01038060 - PIATTELLO SUP.

More information

Quantity required : 4
GU01038160 - SEMICONO VALVOLA

14
P2R reference P2R reference 101374
Maker reference Maker reference GU01038160

GU01038160 - SEMICONO VALVOLA

More information

Quantity required : 8
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600-

15
P2R reference P2R reference 129113
Maker reference Maker reference GU12022600

OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600-

More information

Quantity required : 2
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24x2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203-

16
P2R reference P2R reference 132224
Maker reference Maker reference GU90706203

O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203-

More information

Quantity required : 2
GU05025331 - CAOUTCHOUC

17
P2R reference P2R reference 128547
Maker reference Maker reference GU05025331

GU05025331 - CAOUTCHOUC

More information

Quantity required : 18
GU32116810 - BAGUE 6,8X8,8X9,8

18
P2R reference P2R reference 131434
Maker reference Maker reference GU32116810

GU32116810 - BAGUE 6,8X8,8X9,8

More information

Quantity required : 4
GU96508040 - VIS SANS TETE

19
P2R reference P2R reference 132817
Maker reference Maker reference GU96508040

GU96508040 - VIS SANS TETE

More information

Quantity required : 4
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -976052-

20
P2R reference P2R reference 99763
Maker reference Maker reference 976052

CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -976052-

More information

Quantity required : 2
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

21
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

More information

Quantity required : 4
976153 - SUPPORTO BILANCIERE SX CON PI

22
P2R reference P2R reference 99806
Maker reference Maker reference 976153

976153 - SUPPORTO BILANCIERE SX CON PI

More information

Quantity required : 1
GU92603010 - ECROU M10X1,5

23
P2R reference P2R reference 132480
Maker reference Maker reference GU92603010

GU92603010 - ECROU M10X1,5

More information

Quantity required : 8
GU14018400 - RONDELLE 10,5X21X1

24
P2R reference P2R reference 129180
Maker reference Maker reference GU14018400

GU14018400 - RONDELLE 10,5X21X1

More information

Quantity required : 8
GU14030201 - CULBUTEUR D.COMPLET

25
P2R reference P2R reference 129185
Maker reference Maker reference GU14030201

GU14030201 - CULBUTEUR D.COMPLET

More information

Quantity required : 2
GU14030401 - CULBUTEUR G.COMPLET

26
P2R reference P2R reference 129186
Maker reference Maker reference GU14030401

GU14030401 - CULBUTEUR G.COMPLET

More information

Quantity required : 2
GU91111511 - BAGUE 15X18X43

27
P2R reference P2R reference 132271
Maker reference Maker reference GU91111511

GU91111511 - BAGUE 15X18X43

More information

Quantity required : 4
GU17034050 - VIS EMBRAYAGE

28
P2R reference P2R reference 129311
Maker reference Maker reference GU17034050

GU17034050 - VIS EMBRAYAGE

More information

Quantity required : 4
NUT - FOR ADJUSTING VALVES COMMON TO ALL THE RANGE MOTO-GUZZI - FOR 2 VALVES ENGINE -GU10034100-

29
P2R reference P2R reference 129087
Maker reference Maker reference GU10034100

NUT - FOR ADJUSTING VALVES COMMON TO ALL THE RANGE MOTO-GUZZI - FOR 2 VALVES ENGINE -GU10034100-

More information

Quantity required : 4
ROCKER SPRING "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU94322215-

30
P2R reference P2R reference 132647
Maker reference Maker reference GU94322215

ROCKER SPRING "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU94322215-

More information

Quantity required : 4
GU90118152 - RONDELLE

31
P2R reference P2R reference 132114
Maker reference Maker reference GU90118152

GU90118152 - RONDELLE

More information

Quantity required : 8
GU10032700 - RONDELLE

32
P2R reference P2R reference 129086
Maker reference Maker reference GU10032700

GU10032700 - RONDELLE

More information

Quantity required : 4
GU12031800 - AXE CULBUTEUR

33
P2R reference P2R reference 129115
Maker reference Maker reference GU12031800

GU12031800 - AXE CULBUTEUR

More information

Quantity required : 4
GU98084316 - VIS M6X16

34
P2R reference P2R reference 132928
Maker reference Maker reference GU98084316

GU98084316 - VIS M6X16

More information

Quantity required : 4
GU95120065 - RONDELLE 6,5X11X2

35
P2R reference P2R reference 132744
Maker reference Maker reference GU95120065

GU95120065 - RONDELLE 6,5X11X2

More information

Quantity required : 4
9760955 - COPERCHIO TESTA GRIGIO

36
P2R reference P2R reference 99781
Maker reference Maker reference 9760955

9760955 - COPERCHIO TESTA GRIGIO

More information

Quantity required : 2
GU05023430 - INSERT

37
P2R reference P2R reference 108533
Maker reference Maker reference GU05023430

GU05023430 - INSERT

More information

Quantity required : 2
GASKET - for CYLINDER HEAD COVER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1200 BREVA -976139-

38
P2R reference P2R reference 99800
Maker reference Maker reference 976139

GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1200 BREVA -976139-

More information

Quantity required : 2
SCREW - M6X25 FOR ROCKER COVER "PIAGGIO GENUINE PARTS" MOTO-GUZZI 940 BELLAGIO, 1200 NORGE, BREVA -GU05025930-

39
P2R reference P2R reference 128548
Maker reference Maker reference GU05025930

SCREW - M6X25 FOR ROCKER COVER "PIAGGIO GENUINE PARTS" MOTO-GUZZI 940 BELLAGIO, 1200 NORGE, BREVA -GU05025930-

More information

Quantity required : 16
GU95129180 - RONDELLE 10,5X18X0,8

40
P2R reference P2R reference 132753
Maker reference Maker reference GU95129180

GU95129180 - RONDELLE 10,5X18X0,8

More information

Quantity required : 4
976144 - VITE FISS TESTA M10X118 TCEI

41
P2R reference P2R reference 99801
Maker reference Maker reference 976144

976144 - VITE FISS TESTA M10X118 TCEI

More information

Quantity required : 4
GU13037200 - RONDELLE

42
P2R reference P2R reference 129162
Maker reference Maker reference GU13037200

GU13037200 - RONDELLE

More information

Quantity required : 4
GU14037300 - RONDELLE

43
P2R reference P2R reference 129190
Maker reference Maker reference GU14037300

GU14037300 - RONDELLE

More information

Quantity required : 10
GU32023910 - RACCORDO BLOW BY TESTA

44
P2R reference P2R reference 131380
Maker reference Maker reference GU32023910

GU32023910 - RACCORDO BLOW BY TESTA

More information

Quantity required : 2
976068 - TAPPO CANDELA

45
P2R reference P2R reference 99767
Maker reference Maker reference 976068

976068 - TAPPO CANDELA

More information

Quantity required : 2
GASKET FOR DRAIN CAP or MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075-

46
P2R reference P2R reference 66703
Maker reference Maker reference 486075

GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075-

More information

Quantity required : 2
