Vehicle Exploded View - MOTO-GUZZI BREVA 1200 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

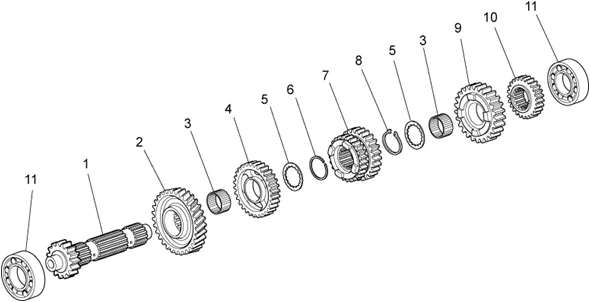

Moteur : 34.50 ARBRE PRIMAIRE BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/464/Breva_1200_2007_34.50.PNG)
1 |
GU05210631 - ARBRE PRIMAIRE Z=17 More informationQuantity required : 1 |
||||||
|
2 |
GU06215600 - ENGRENAGES TRANSM. Z=35 More informationQuantity required : 1 |
||||||
|
3 |
GU92252029 - CAGE A ROULEAUX 26X30X15,6 More informationQuantity required : 2 |
||||||
|
4 |
976177 - INGRANAGGIO 5 AP Z=31 More informationQuantity required : 1 |
||||||
|
5 |
GU05214630 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
|
6 |
GU90271230 - ANNEAU ELASTIQUE 30X1,2SW More informationQuantity required : 1 |
||||||
|
7 |
GU05211431 - ENGRENAGE 3A-4A Z=23-26 More informationQuantity required : 1 |
||||||
|
8 |
GU90271030 - ANNEAU ELASTIQUE 30X27,9 More informationQuantity required : 1 |
||||||
|
9 |
976179 - INGRANAGGIO 6 AP Z=30 More informationQuantity required : 1 |
||||||
|
10 |
GU05211331 - ENGRENAGE 2A Z=20 More informationQuantity required : 1 |
||||||
|
11 |
GU92201822 - ROULEMENT A BILLES 20X52X15 More informationQuantity required : 2 |
