Vehicle Exploded View - MOTO-GUZZI BREVA 1200 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

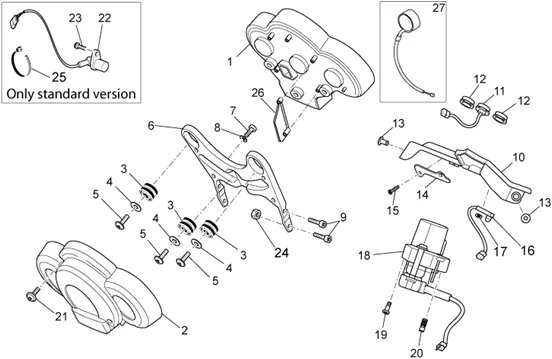

Chassis : 33.19 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/464/Breva_1200_2007_33.19.PNG)
1 |
883955 - CRUSCOTTO BREVA 1200 KM More informationQuantity required : 1 |
||||||
|
1 |
883348 - CRUSCOTTO BREVA 1200 MPH More informationQuantity required : 1 |
||||||
|
2 |
GU05766530 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
3 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
4 |
AP8150255 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
5 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 3 |
||||||
|
6 |
GU05764030 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
7 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.JPG)
8 |
658837 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
GU98692313 - VIS M6X12 More informationQuantity required : 4 |
||||||
|
10 |
GU05764330 - SUPPORT TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
11 |
GU05780430 - INTERRUPTEUR ABS More informationQuantity required : 1 |
||||||
|
12 |
GU05764430 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
13 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
|
14 |
GU05764530 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
15 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.JPG)
16 |
AP8124936 - DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
|
17 |
GU90274002 - RONDELLE POUR ARBRES More informationQuantity required : 2 |
||||||
|
18 |
GU05782530 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
19 |
600123 - BOULON M8X30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
20 |
AP8152238 - VIS A ARRACHEMENT M8X28 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
21 |
SCREW - BODY PARTS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO GUZZI M3X12 -AP8152334- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/4/img/71574.jpg)
22 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, NORGE, SPORT/APRILIA CAPONORD -AP8124985- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.JPG)
23 |
598839 - VIS More informationQuantity required : 1 |
||||||
|
24 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
25 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 2 |
||||||
|
26 |
GU05767830 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/8/6/img/100886.JPG)
27 |
981087 - ANTENNA IMMOBILIZER More informationQuantity required : 1 |
