Eclatés de véhicule - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

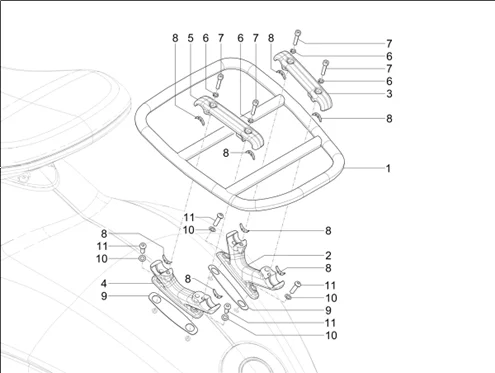

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_02.44.png)
1 |
1B012520 - SADDLE COVER KIT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1B011847000D24 - PORTE-BAGAGES ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1B011851000D24 - LOWER RIGHT CARRIER SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1B011850000D24 - UPPER RIGHT CARRIER SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1B011849000D24 - LOWER LEFT CARRIER SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
1B000692 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
1B000006 - JOINT Plus d'informationsQuantité requise : 8 |
||||||
|
9 |
1B000007 - JOINT Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
10 |
RONDELLE RESSORT (6,4X11X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -006966 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
11 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -834038 Plus d'informationsQuantité requise : 4 |
