Eclatés de véhicule - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

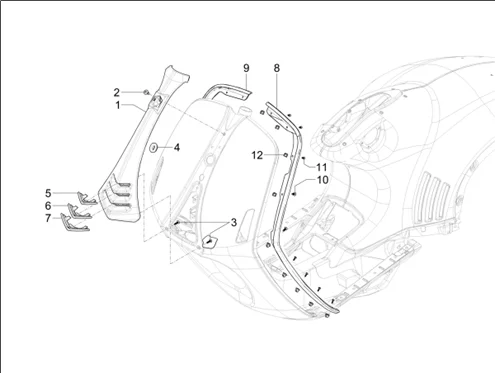

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_02.26.png)
1 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -581249 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
676154 - CACHE DIRECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
2 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
3 |
VIS TORX (4X16) TARAUD CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM180701 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
4 |
TAMPON/SILENCBLOC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1B000888 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
TAMPON/SILENCBLOC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1B000888 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1B011371400D24 - ORNEMENT SUPERIEUR Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1B011372400D24 - ORNEMENT CENTRAL Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1B011373400D24 - ORNEMENT INFERIEUR Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
1B011374400D24 - CADRE ESTHETIQUE G. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
10 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
11 |
VIS CRUCIFORME (3,5X11) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -296141 Plus d'informationsQuantité requise : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
12 |
AGRAPHE/CHEVILLE A EXPENSION ORIGINE PIAGGIO COMMUN A LA GAMME -157716 Plus d'informationsQuantité requise : 18 |
