Eclatés de véhicule - VESPA VESPA 946 125 E5+ 12° Anniversary 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

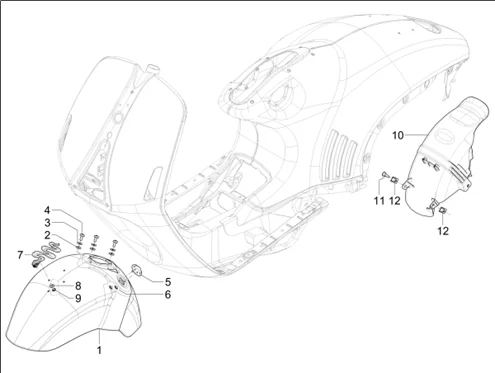

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1348/Vespa_946_125_E5_12_Anniversary_2025_EMEA_02.33.png)
1 |
AGRAPHE/CHEVILLE A EXPENSION ORIGINE PIAGGIO COMMUN A LA GAMME -157716 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
1B00075901 - FRONT FENDER WITH I.P. - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
2 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
3 |
RONDELLE RESSORT (6,4X16X1) ORIGINE PIAGGIO COMMUN A LA GAMME -078307 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 3 |
||||||
|
5 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
6 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
8 |
ENTRETOISE CAOUTCHOUC (7X13X2) ORIGINE PIAGGIO COMMUN A LA GAMME -479882 Plus d'informationsQuantité requise : 4 |
||||||
|
9 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
676218 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
11 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
