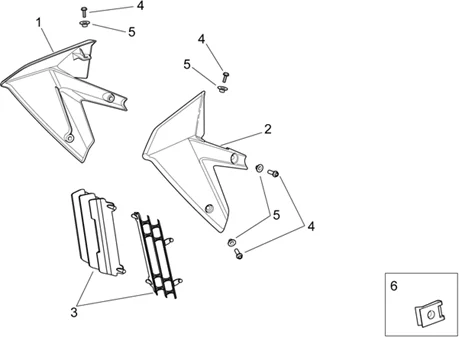

Chassis : 28.09 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/629/SXV_550_Street_Legal_2009-2011_28.09.PNG)
1 |
AP8184781 - CONVOYEUR D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/2/7/4/img/55274.jpg)
1 |
CONVOYEUR DROIT NOIR ORIGINE APRILIA 450-550 SXV 2009>2011 -AP8184915 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8184780 - CONVOYEUR G Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8184916 - CONVOYEUR G NOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/6/7/img/97267.jpg)
3 |
GRILLE DE RADIATEUR ORIGINE APRILIA 450-550 RXV, SXV -AP9100366 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
5 |
RONDELLE EN T (10X16X3,5) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100053 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 6 |
