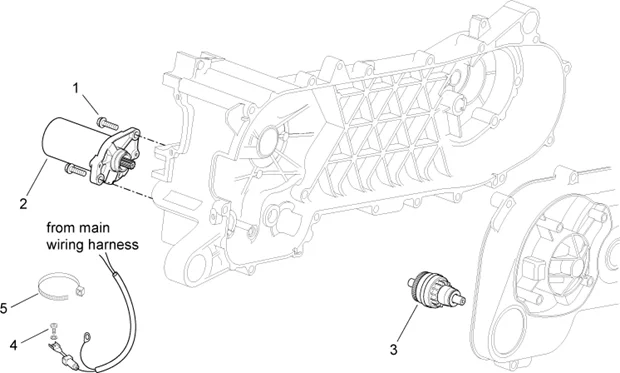

Moteur : 29.50 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_29.50.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
1 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 2 |
||||||
|
1 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/1/img/68531.jpg)
2 |
DEMARREUR ORIGINE PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T -82530R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/9/img/70939.jpg)
2 |
DEMARREUR SCOOT ORIGINE PIAGGIO 50 FLY 4T 2005>, LIBERTY 4T2005>, NRG PURE-JET, ZIP 4T 2000>/GILERA 50 RUNNER PURE-JET/VESPA LX 4T2005>, PRIMAVERA 4T2013>, VESPA S 4T 2008> -96921R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/4/img/66164.jpg)
3 |
LANCEUR/RENVOI DE DEMARREUR ORIGINE PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82958R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/5/img/66215.jpg)
3 |
LANCEUR/RENVOI DE DEMARREUR SCOOT ORIGINE PIAGGIO 50 4T FLY 2005>, LIBERTY 2005>, VESPA LX 2005>, PRIMAVERA 2013>, VESPA SPRINT 2014>, NRG PURE-JET 2005>, ZIP 2000>/APRILIA 50 RS 2006> -289202 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
4 |
VIS CRUCIFORME (4X6) ORIGINE PIAGGIO COMMUN A LA GAMME -018644 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
5 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,5X180MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120416 Plus d'informationsQuantité requise : 1 |
