Eclatés de véhicule - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

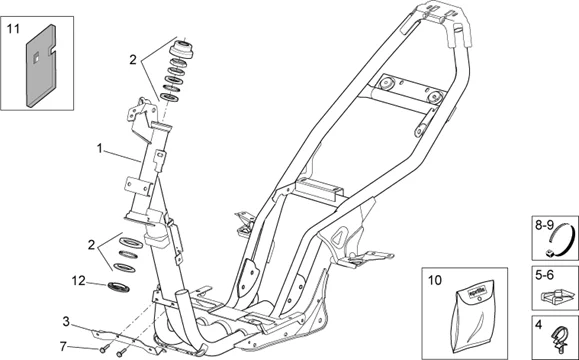

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.01.PNG)
1 |
8530325 - CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/1/5/9/img/57159.jpg)
2 |
JEU DE DIRECTION ORIGINE PIAGGIO APRILIA 50 SR H2O 2004> -AP82230606 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8234233 - SUPPORTO PASSARUOTA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8221310 - PASSE-CABLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
7 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -598839 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
8 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,5X180MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120416 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
9 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,5X280MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120657 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
852232 - TOOLS KIT ROLL Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
852233 - TOOLS KIT ROLL Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8217040 - PROTEZIONE FUSTELLATA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/5/img/56985_20251126131458.jpg)
12 |
PARE POUSSIERE JEU DE DIRECTION INFERIEUR ORIGINE APRILIA SR50 -AP8220710 Plus d'informationsQuantité requise : 1 |
