Eclatés de véhicule - APRILIA SR 50 H20 Ditech Carb 00-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

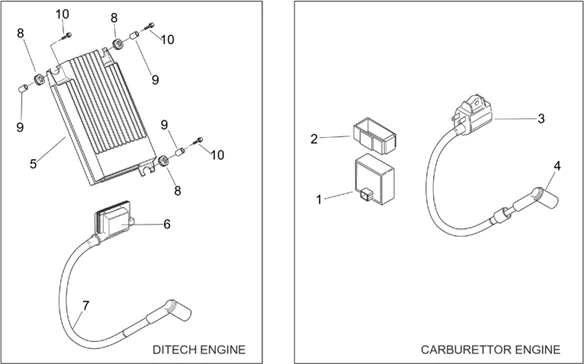

Moteur : 29.59 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_29.59.PNG)
1 |
AP3RCA0007526 - CENTRALE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Caoutchouc faisc. CDI |
||||||
|
3 |
AP2RDA000034 - BOBINE HT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP3RDA000448 - BOBINE HT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Pipe bougie |
||||||
|
5 |
AP8224417 - CENTRALE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Centrale; |
||||||
|
5 |
AP8224555 - CENTRALINA SR ECE 25KM/H Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CENTRALINA SR USA |
||||||
|
5 |
AP8224554 - CENTRALINA SR 45KM/H Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
830094 - BOBINE H.T. Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8224379 - CABLE HT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
8 |
CAOUTCHOUC (7X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120405 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
9 |
BAGUE/DOUILLE (5.3X8X7.1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221036 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
10 |
VIS BRIDE TH (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152273 Plus d'informationsQuantité requise : 3 |
