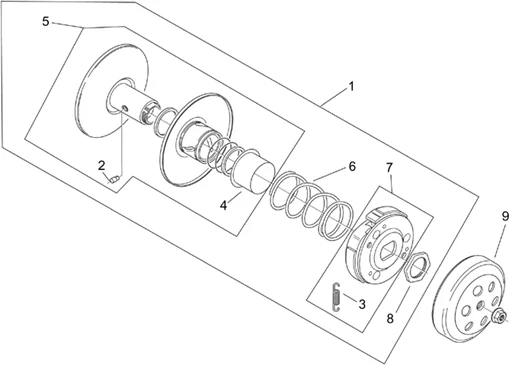

Moteur : 29.49 EMBRAYAGE HONG ZENG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_29.49.PNG)
1 |
AP3MDA000621 - VARIATEUR AVEC EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP3MDA000759 - GRUPPO PULEGGIA POST.CON FRIZ. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP5RMR000245 - ROULEAU GUIDE-VARIATEUR Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
AP5RMR000246 - RES.RAP.SABOTS EMB. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP5RMR000248 - MOLLA CEPPI FRIZIONE 10KG Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP5RMR000242 - RONDELLE RESSORT VARIATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP5RMR000243 - POULIE 2AIRE MOBILE COMPL. Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP5RMR000241 - RESS.POULIE SEC. Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP5RMR000240 - EMBRAYAGE CENTRIFUGE COMPLET Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP5RMR000239 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP3MDA000619 - CLOCHE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
