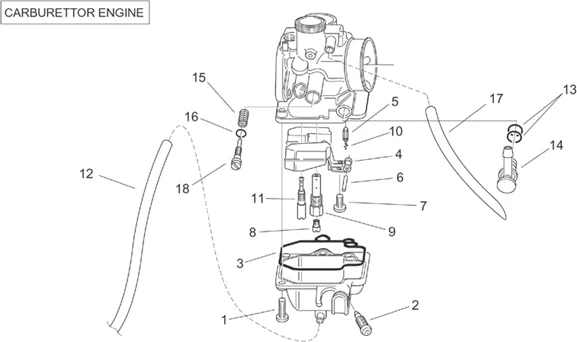

Moteur : 29.53 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/575/SR_50_H20_Ditech_Carb_00-04_29.53.PNG)
1 |
AP5RAR000030 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
AP5RAR000031 - VIS VIDANGE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP5RAR000032 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP5RAR000033 - FLOTTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP5RAR000034 - VANNE POINTEAU Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP5RAR000035 - AXE FLOTTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
Vis; |
||||||
|
8 |
Gicleur max; |
||||||
|
9 |
AP5RAR000038 - PORTE-JET Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP5RAR000039 - ARR?T Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP5RAR000040 - GICLEUR MINIMUM Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP5RAR000065 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
Joint torique; |
||||||
|
14 |
AP5RAR000063 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP5RAR000062 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
AP5RAR000061 - JOINT TORIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP5RAR000046 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP5RAR000060 - VIS REGLAGE MINIMUM Plus d'informationsQuantité requise : 1 |
