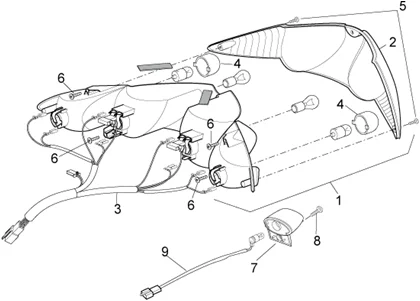

Chassis : 28.37 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/282/Sport_City_Cube_200_carb_E3_2008-2010_28.37.PNG)
1 |
864936 - FEU ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
865405 - GLACE PHARE AR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8127644 - CABLAGGIO FANALE POSTERIORE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
865406 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP8590045 - VITE 3,5X9,5 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
7 |
ECLAIRAGE DE PLAQUE D'IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -85256R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
8 |
VIS PARKER (4,2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150362- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8124976 - CABLAGE LUMIERE PLAQUE Plus d'informationsQuantité requise : 1 |
