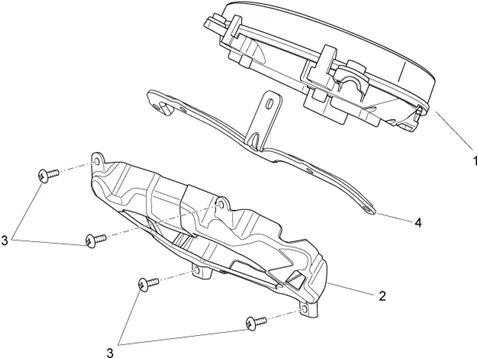

Chassis : 28.18 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/282/Sport_City_Cube_200_carb_E3_2008-2010_28.18.PNG)
1 |
860378 - TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
896788 - TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
JC56322X92000 - SUPPORT TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
860929 - SUPPORT Plus d'informationsQuantité requise : 1 |
