Eclatés de véhicule - APRILIA SPORT CITY 200 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

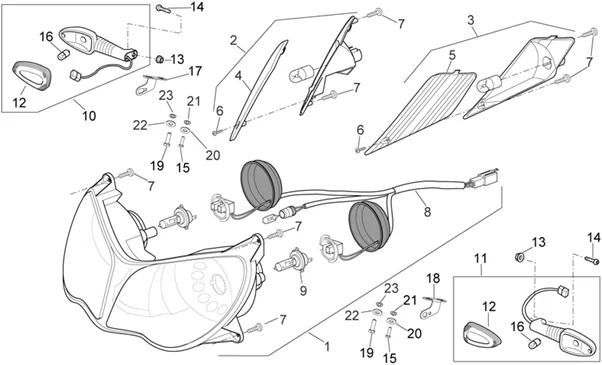

Chassis : 28.39 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/279/Sport_City_200_E3_2006-2008_28.39.PNG)
1 |
AP8127696 - FANALE ANTERIORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/1/img/69641.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 125-200-250-300 SPORT CITY APRILIA, DERBI RAMBLA -852367- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8127925 - TRANSPARENT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8187077 - TRANSPARENT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8187082 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8187084 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8187086 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8127562 - INDICATORE DIREZ.ANT.DX Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8187078 - TRANSPARENT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8127561 - INDICATORE DIREZ.ANT.SX Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8187083 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8187085 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8187087 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8127926 - TRANSPARENT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8590040 - VETRO INDICATORE DIR.DX Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8590047 - VETRO INDICATORE DIR.SX Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8590041 - VITE 2,9X9,5 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 8 |
||||||
|
8 |
AP8127698 - CABLAGGIO FANALE ANT.C/CUFFIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
10 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
11 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
12 |
CABOCHON DE CLIGNOTANT ORIGINE PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8127552- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
15 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150137- Plus d'informationsDescription : COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA Quantité requise : 2 |
||||||
|
16 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127489- Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
852364 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
853007 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
19 |
VIS BTR (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -319165- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
20 |
RONDELLE PLATE (6,4X12,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150014- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
21 |
RONDELLE ELASTIQUE COURBE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -658830- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
22 |
RONDELLE PLATE (8.4X16X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150017- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
23 |
RONDELLE ELASTIQUE COURBE (8.5X15X0.8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150376- Plus d'informationsQuantité requise : 2 |
