Eclatés de véhicule - APRILIA SPORT CITY 200 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

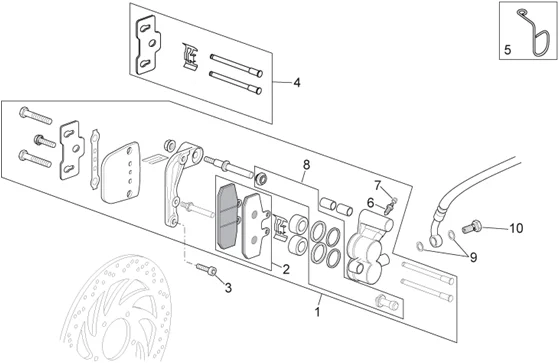

Chassis : 28.35 PINCE AV I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/279/Sport_City_200_E3_2006-2008_28.35.PNG)
1 |
AP8113844 - PINCE FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8133739 - PINZA FRENO ANTERIORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/6/img/71666.jpg)
2 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO APRILIA 500 SCARABEO, ATLANTIC 2001>2006 AV GAUCHE, 125 SPORTCITY 2006> AV, 125 SCARABEO 1999>2004 (GRIMECA) -AP8133725- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/2/img/71672.jpg)
2 |
PLAQUETTES DE FREIN ORIGINE PIAGGIO MOTO-GUZZI 750 V7 AR/APRILIA 125-250 SPORT-CITY AV, 400-500 SCARABEO AV, 850 NA-MANA AR -AP8133798- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
3 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150107- Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP8113867 - PIVOTS+RESSORTS PINCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/3/img/71673.jpg)
4 |
KIT AXE ET RESSORT ETRIER DE FREIN ORIGINE PIAGGIO APRILIA 125-250-300 SPORT-CITY/MOTO-GUZZI 750 V7, NEVADA -AP8133799- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8221172 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
6 |
VIS DE PURGE ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER APRILIA -AP8213108- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8133800 - SPURGO ARIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
7 |
CAPUCHON RENIFLARD ETRIER DE FREIN OROGINE PIAGGIO COMMUN A LA GAMME 2008< -AP8113005- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8213575 - CAPPUCCIO SPURGO ARIA Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8113868 - KIT REVISION PINCE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8133801 - KIT REVISIONE PINZA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
10 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003- Plus d'informationsQuantité requise : 1 |
