Eclatés de véhicule - APRILIA SPORT CITY 200 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

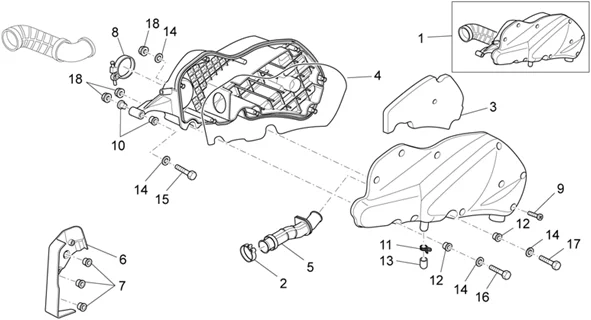

Chassis : 28.26 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/279/Sport_City_200_E3_2006-2008_28.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/6/img/70406.jpg)
1 |
BOITIER FILTRE AIR PIAGGIO 250-300 X7, CARNABY, BEVERLY/GILERA 250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY 2011< -871805- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/5/img/70405.jpg)
1 |
BOITIER FILTRE AIR ORIGINE PIAGGIO 125 BEVERLY 2007>, CARNABY 2007>, X7 2008>/GILERA 125 RUNNER 2005>, NEXUS 2007>/APRILIA 125 ATLANTIC 2006>, SPORT-CITY 2006> -871804- Plus d'informationsQuantité requise : 1 |
||||||
1 |
AP8184236 - BOITE FILTRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
2 |
COLLIER CLIC 35-33 ORIGINE PIAGGIO COMMUN A LA GAMME -CM001926- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
3 |
ELEMENT/MOUSSE DE FILTRE A AIR (PREMIUM) MAXISCOOTER ORIGINE PIAGGIO 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
4 |
JOINT COUVERCLE DE FILTRE A AIR (D3) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120615- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/9/img/69379.JPG)
5 |
MANCHON FILTRE A AIR ORIGINE PIAGGIO 125 BEVERLY 2007>2015 -845996- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/6/img/68856.jpg)
5 |
MANCHON ASPIRATION DE BOITIER FILTRE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -829543- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
672198 - PROTECTION FILTRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
7 |
DOUILLE/ENTRETOISE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121032- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.JPG)
8 |
COLLIER 58-62.5 ORIGINE PIAGGIO COMMUN A LA GAMME -260918- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
10 |
BAGUE/DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -830057- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
11 |
COLLIER DURITE (D13) REFROIDISSEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM002910- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
12 |
DOUILLE EN T (D5) MOLETEE CENTRAGE BOITE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME -830056- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8144701 - CAPPUCCIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
14 |
RONDELLE PLATE (6.6X18X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150015- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.JPG)
15 |
VIS BTR (6X55) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150045- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
16 |
VIS BTR (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150403- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
17 |
VIS BTR (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150285- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 3 |
