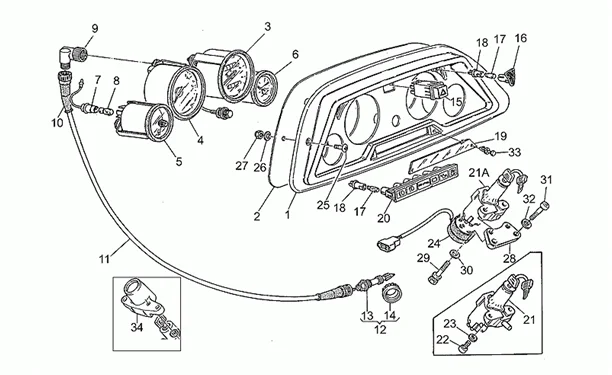

Chassis : 33.06 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/515/SP_III_1000_1989-1994_33.06.PNG)
1 |
Tableau de bord |
||||||
|
2 |
|
||||||
|
3 |
GU29761560 - COMPTEUR KM Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
COMPTE-TOURS |
||||||
|
5 |
Horloge cpl. |
||||||
|
6 |
VOLTMETRE |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
AMPOULE/LAMPE 12V 3W W2,1X9,5D ORIGINE PIAGGIO COMMUN A LA GAMME -294131 Plus d'informationsQuantité requise : 3 |
||||||
|
9 |
GU17768360 - RENVOI 90° Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU17762200 - GAINE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU12760400 - TRANSMISSION TACHYMETRE * Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU14762510 - RENVOI Z5/11 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
|
||||||
|
14 |
|
||||||
|
15 |
Turn indicator switch |
||||||
|
16 |
GU65758970 - GR.PORTE-TEMOIN Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
17 |
AMPOULE/LAMPE 12V 1,2W CULOT W2X4.6D BULB T5 TEMOIN BLANC ORIGINE PIAGGIO COMMUN A LA GAMME -164634- Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
18 |
PORTE-AMPOULE TEMOIN TABLEAU DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU19768680- Plus d'informationsQuantité requise : 8 |
||||||
|
19 |
GU29781160 - CACHE VITRE TEMOINS Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
TEMOIN COMPLET |
||||||
|
21 |
Bloc démarreur-bloc |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/8/0/img/132980.jpg)
22 |
VIS BTR TETE BOMBEE (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98230825 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
23 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
FAISCEAU PRINCIPAL |
||||||
|
25 |
Vis |
||||||
|
26 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
27 |
GU92630106 - ECROU M6X1 Plus d'informationsQuantité requise : 2 |
||||||
|
28 |
SUPPORT |
||||||
|
28 |
SUPPORT |
||||||
|
29 |
|
||||||
|
29 |
GU97260425 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
30 |
GU95000208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
31 |
GU97260435 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
31 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680435 Plus d'informationsQuantité requise : 2 |
||||||
|
32 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
33 |
|
||||||
|
34 |
|
