Eclatés de véhicule - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

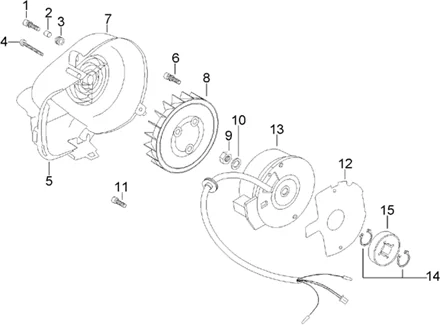

Moteur : 29.34 VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_29.34.PNG)
1 |
AP8206508 - VIS Plus d'informationsQuantité requise : 9 |
||||||
|
2 |
AP8206480 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8206471 - SILENTBLOC Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8206494 - VIS CH SANS BOUT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8206474 - JOINT CONVOYEUR Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8206499 - VIS AVEC 2 RONDELLES Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
AP8206463 - CONVOYEUR VENTILATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8206461 - VENTILATEUR EN PLASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
ECROU (M10X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8206183 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8206205 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
Vis |
||||||
|
12 |
AP8206485 - JOINT STATOR VOLANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/4/5/img/55845.jpg)
13 |
ALLUMAGE (COMPLET ROTOR+STATOR) ORIGINE APRILIA 50 RALLY, SR 1994>2000 -AP8206462 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8206179 - BAGUE SEEGER POUR ARBRE Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
AP8206746 - ENGRENAGE MENANT POMPE HUILE Plus d'informationsQuantité requise : 1 |
