Eclatés de véhicule - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

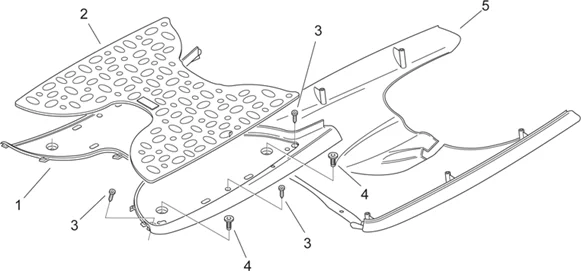

Chassis : 28.13 CARROSSERIE CENTRALE II - R. PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.13.PNG)
1 |
AP8231246 - PLANCHER REPOSE-PIEDS GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
Tapis gris |
|||||||||
|
2 |
AP8239846 - TAPIS NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
Tapis marron |
|||||||||
|
2 |
Tapis bleu |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413 Plus d'informationsQuantité requise : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
4 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
4 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 4 |
|||||||||
|
5 |
Prot.inf.rep-pieds noir; |
|||||||||
|
5 |
Prot.inf.rep-pieds noir; |
|||||||||
|
5 |
Prot.inf.rep-pieds bl.; |
|||||||||
|
5 |
AP8239368 - PROT.INF.REP-PIEDS MAR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
Prot.inf.rep.pieds bleu tr.; |
|||||||||
|
5 |
PROTECTION INF. |
|||||||||
|
5 |
AP8248436 - PROT.INF.REP-PDS ROUGE CERISE Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
Prot.inf.rep-pieds b. |
|||||||||
|
5 |
Prot.inf.rep-pieds blanc tr.; |
|||||||||
|
5 |
AP8239654 - PROT.INF.REP-PIEDS BL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
Prot.inf.rep-pieds vert |
|||||||||
