Eclatés de véhicule - APRILIA SCARABEO 2T 50 Mot Minarelli 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

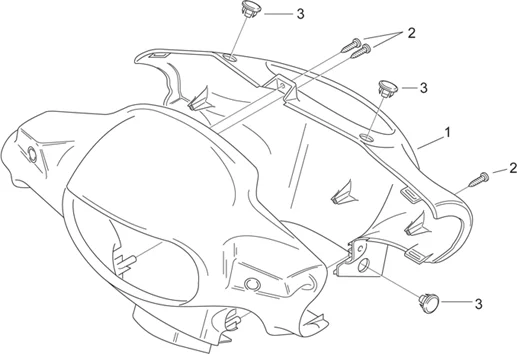

Chassis : 28.07 CARROSSERIE AV. II - SUPPORT TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/602/Scarabeo_50_2T_Mot_Minarelli_1998_28.07.PNG)
1 |
Support bleu saphir |
||||||
|
1 |
Support blanc |
||||||
|
1 |
T de b. marron bl. |
||||||
|
1 |
T de b. beige |
||||||
|
1 |
T de b. gris ab. |
||||||
|
1 |
AP8239787 - T DE B. VERT LINFA Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
T de b. noir aprilia |
||||||
|
1 |
AP8239931 - T DE B. BL. SKY Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
Tableau de bord marron trans.; |
||||||
|
1 |
Tableau de bord, bleu trans.; |
||||||
|
1 |
AP8248425 - TABLEAU DE BORD NOIR TRANS. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
Support rouge cerise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
2 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
Bouchon, bleu |
||||||
|
3 |
Bouchon p.blanc A. |
||||||
|
3 |
Bouchon, beige |
||||||
|
3 |
AP8239776 - BOUCHON, GRIS AB. Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
Bouchon, vert linfa |
||||||
|
3 |
Bouchon, noir aprilia |
||||||
|
3 |
Bouchon, bleu sky |
||||||
|
3 |
AP8248428 - BOUCHON, NOIR TRANS. Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
Bouchon, rouge cerise |
