Eclatés de véhicule - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

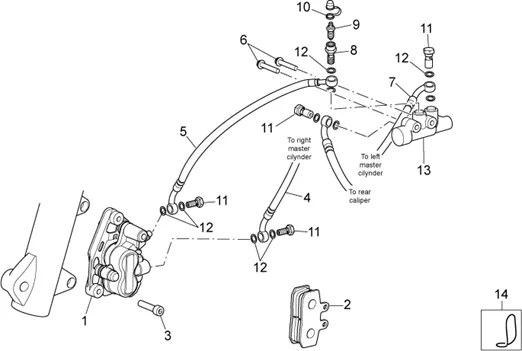

Chassis : 28.24 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.24.PNG)
1 |
AP8133717 - PINZA FRENO ANTERIORE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8133851 - PINZA FRENO ANT.3 PISTONI Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8133761 - PASTIGLIE -COPPIA- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/6/img/71676.jpg)
2 |
PLAQUETTES DE FREIN AVANT ORIGINE PIAGGIO POUE APRILIA 125-250 ATLANTIC 2003>2006, 400-500 ATLANTIS-SPRINT 2005>2008, 125-250-300 SCARABEO LIGHT (PAIRE) -AP8133815- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
3 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150236- Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
894851 - TUBE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
852415 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
6 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152282- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8133866 - TUBO FRENO POMPA-RIPARTITORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
8 |
VIS PERCEE BANJO EMBRAYAGE ORIGINE APRILIA 1000 RSV 1998>2008 -AP8113762- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8113761 - PURGE AIR Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8113230 - CAPUCHON RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
11 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
12 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004- Plus d'informationsQuantité requise : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
13 |
REPARTITEUR DE FREIN MAXISCOOTER ORIGINE APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738- Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8121856 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
