Eclatés de véhicule - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

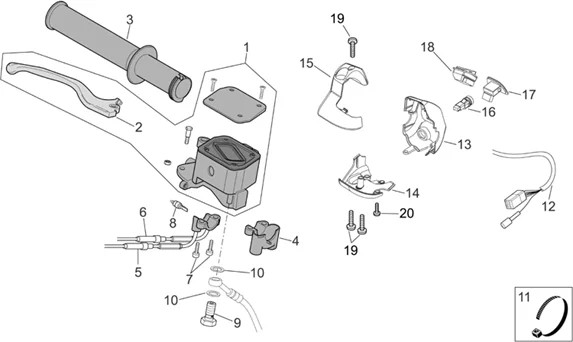

Chassis : 28.18 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.18.PNG)
1 |
AP8133582 - MA?T. CYL. FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
MAITRE CYLINDRE DR FREIN AVANT ORIGINE PIAGGIO APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8118641 - LEVIER FREIN DROIT GRIMECA APRILIA 125-250-400-500 ATLANTIC, SCARABEO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
2 |
LEVIER DE FREIN AVANT ORIGINE PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO -AP8133811- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR (ABOLI SANS REMPLACEMENT) Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8118582 - SIEGE COMM. GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
852435 - TRASMISSION GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
852436 - TRASMISSION GAZ Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
7 |
VIS BTR TETE BOMBEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152117- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
8 |
CONTACTEUR FEU STOP ORIGINE PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
9 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
11 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,5X180MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120416- Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
642989 - DEVIO DTE+CABL. Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
851807 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
851809 - COMPLETE REAR COVER Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
851811 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
16 |
BOUTON DEMARRAGE ORIGINE PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
17 |
BOUCHON/OBTURATEUR DE TABLEAU DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127896- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
18 |
COMMUTATEUR ARRET MOTEUR/COUPE CIRCUIT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -641824- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
19 |
VIS BTR TETE BOMBEE (5X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152270- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
20 |
VIS BTR TETE BOMBEE (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152269 Plus d'informationsQuantité requise : 1 |
