Eclatés de véhicule - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

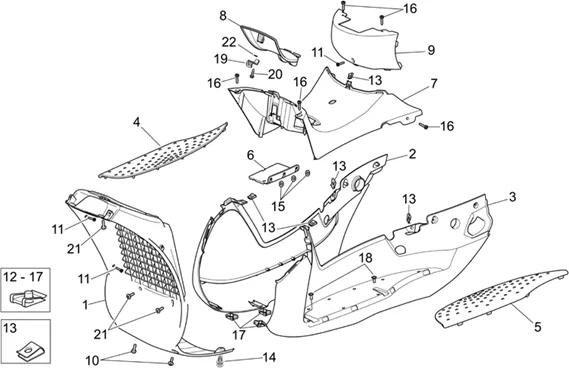

Chassis : 28.12 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.12.PNG)
1 |
852950 - GRILLE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
AP8179116 - PIANALE DX Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
AP8179115 - PIANALE SX Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
AP8184087 - TAPIS REP-PIEDS NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
AP8184086 - TAPIS REP-PIEDS NOIR Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
AP8179500 - SPORTELLO PIANALE Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
AP8179123 - TUNNEL Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
AP8179120 - SPORTELLO TAPPO BENZINA Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
AP8179117 - COPERCHIO ACCESSO CANDELA Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
11 |
VIS PARKER (4,2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152351- Plus d'informationsQuantité requise : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
13 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017409- Plus d'informationsQuantité requise : 6 |
|||||||||
|
14 |
AP8220471 - RIVET EN PLASTIQUE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
15 |
RONDELLE ELASTIQUE (5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150450- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
16 |
VIS PARKER (5,5X15,9) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150426- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
18 |
VIS BTR TETE BOMBEE (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152268- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/1/img/72011.jpg)
19 |
EQUERRE DE TRAPPE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -AP8161182- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
20 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
21 |
VIS BRIDE BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152246- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
22 |
RONDELLE PLATE (4X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150158- Plus d'informationsQuantité requise : 1 |
|||||||||
