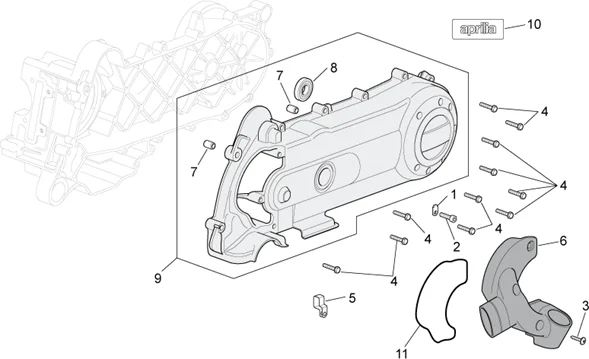

Moteur : 29.41 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/615/Scarabeo_100_4T_E3_Net_2010_29.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
1 |
PLAQUETTE DE MAINTIEN DU CABLE DE FREIN SUR CARTER MOTEUR ORIGINE PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S -564497 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
2 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
3 |
VIS CRUCIFORME (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -435295 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
4 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/8/img/67068.jpg)
5 |
564629 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
6 |
AP8258042 - PRESA D'ARIA VARIATORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
8 |
ROULEMENT (28X8X9) CARTER TRANSMISSION ORIGINE PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/9/img/70419.jpg)
9 |
COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 50 TYPHOON 4T 2010>/APRILIA 50 SR MOTARD 4T, SCARABEO 4T, SPORT-CITY 4T -8722275- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8267447 - PLAQUETTE 'APRILIA' Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/0/img/66470.jpg)
11 |
JOINT DE PROTECTION DE CARTER TRANSMISSION ORIGINE PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT -435251 Plus d'informationsQuantité requise : 1 |
