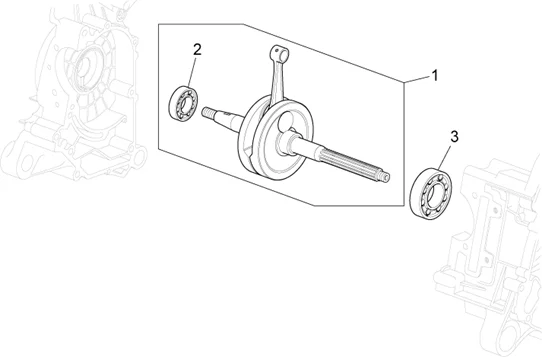

Moteur : 29.31 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/615/Scarabeo_100_4T_E3_Net_2010_29.31.PNG)
Rechercher
1 |
969958 - VILEBREQUIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/0/img/70950.jpg)
2 |
ROULEMENT (17X42X13) DE VILLEBREQUIN COTE ALLUMAGE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 4T -96925R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/2/img/68612_20251023155932.jpg)
3 |
ROULEMENT (20X60X13) EMBIELLAGE ORIGINE MOTEUR PIAGGIO 50 4T (COTE GAUCHE) -82671R Plus d'informationsQuantité requise : 1 |
