Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

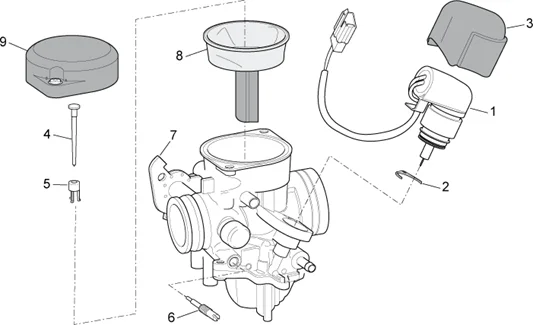

Moteur : 29.19 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/616/Scarabeo_100_4T_E3_Net_2009_29.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/7/img/73207.jpg)
1 |
STARTER ORIGINE PIAGGIO 100 FLY, LIBERTY/APRILIA 100 SCARABEO 2014< -CM142911 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
2 |
PLAQUETTE DE CARBURATEUR ORIGINE 50-125-200 COMMUN A LA GAMME 2016< -2828843 Plus d'informationsQuantité requise : 1 |
||||||
3 |
CAPUCHON DE STARTER ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -828844- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
CM142706 - POINTEAU CON. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
CM142707 - POLNTEAU CON. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
5 |
POINTEAU ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 4T ET MAXISCOOTER 125 CC -CM147102 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/5/img/73275.jpg)
6 |
VIS REGLAGE RICHESSE ORIGINE PIAGGIO APRILIA 50-125 SCARABEO 4T 2009< -CM151701 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
CM151704 - VIS REG. Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
828839 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
CM146602 - PISTON MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
828824 - COUVERCLE Plus d'informationsQuantité requise : 1 |
