Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

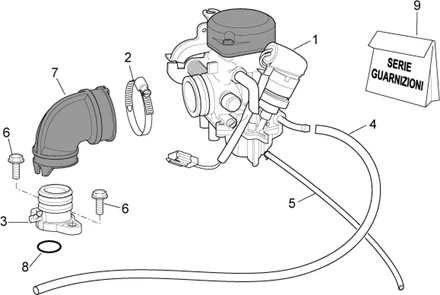

Moteur : 29.18 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/616/Scarabeo_100_4T_E3_Net_2009_29.18.PNG)
1 |
CM141909 - CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
CM141913 - CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
969628 - BANDE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/3/img/70993.jpg)
3 |
RACCORD ADMISSION ORIGINE PIAGGIO 100 ZIP, LIBERTY, FLY 4T/APRILIA 100 SCARABEO -969761- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
4 |
DURITE/TUYAU ESSENCE (5.5X10) ORIGINE APRILIA-MOTO GUZZI COMMUN A LA GAMME -896544 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
896570 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
6 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/2/img/70992.jpg)
7 |
RACCORD/PIPE ADMISSION ORIGINE PIAGGIO 100 FLY, LIBERTY, ZI (APAC) -969757 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
8 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -969323 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/9/img/66909.jpg)
9 |
JOINT DE CUVE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50-100 CC 4T -497038 Plus d'informationsQuantité requise : 1 |
