Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

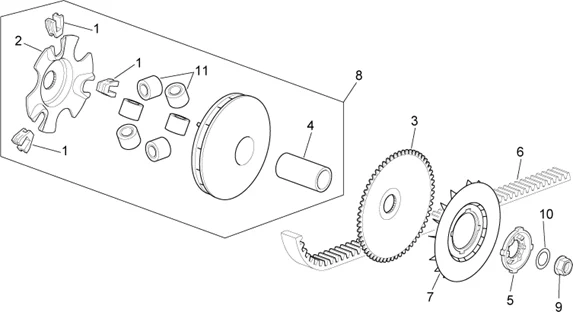

Moteur : 29.40 VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/616/Scarabeo_100_4T_E3_Net_2009_29.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
1 |
GUIDE/PATIN DE VARIATEUR ORIGINE PIAGGIO 50 ZIP 1996>, TYPHOON 1996>, FLY 2005>, LIBERTY 1998>, NRG 1998>, VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER, RUNNER 1997>/APRILIA 50 SR 2011> -289931 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/4/img/66594.jpg)
2 |
LOGEMENT/FLASQUE GALETS ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -480227 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/1/img/66581.jpg)
3 |
JOUE FIXE VARIATEUR SCOOT ORIGINE PIAGGIO 50 TYPHOON 2005>, ZIP 2000>, FLY 2T 2005>, LIBERTY 2005>, NRG 2005>, VESPA LX 2005>, VESPA-S 2007>/ 50 STALKER 2005>/APRILIA 50 SR 2012> 50 SXR 2021> -479561 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/5/img/66595.jpg)
4 |
ENTRETOISE/CANON DE VARIATEUR ORIGINE PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD -480230 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/5/img/70645.jpg)
5 |
ROCHET DE KICK ORIGINE PIAGGIO COMMUN GAMME SCOOTER 50 2T ET 4T -8770756 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/2/img/68602.jpg)
6 |
COURROIE ORIGINE PIAGGIO APRILIA 100 SCARABEO 2000> -82646R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/9/img/69359.jpg)
7 |
DISQUE VENTILATEUR DE POULIE MOTRICE ORIGINE PIAGGIO 50 TYPHOON 2004>, NRG 2005>, ZIP 2000>, VESPA LX 2005>, FLY 2005>/APRILIA 50 SR 2010> 50 SXR 2021>/GILERA 50 STALKER 2003>, RUNNER 2004 -845611 Plus d'informationsQuantité requise : 1 |
||||||
8 |
CM110309 - DEMI POULIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
9 |
ECROU DE VARIATEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -289519 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/9/img/66049.jpg)
10 |
RONDELLE DE POULIE MOTRICE (23X15X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 2T ET 4T -265300 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/2/img/68862.jpg)
11 |
GALET/ROULEAU ORIGINE PIAGGIO APRILIA 100 SCARABEO 4T 2001> (JEU DE 6) -8296385 Plus d'informationsQuantité requise : 6 |
