Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

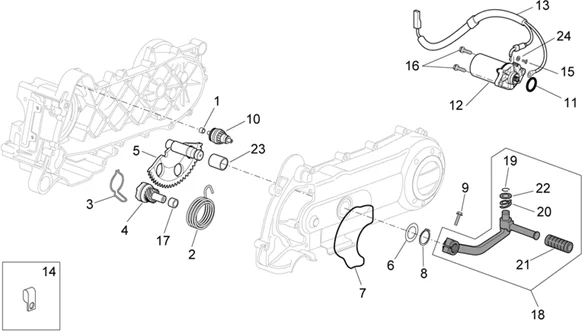

Moteur : 29.30 PIGNON ALLUM. - DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/620/Scarabeo_100_4T_E3_2006-2009_29.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
1 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/3/img/66223.jpg)
2 |
RESSORT RAPPEL DE KICK ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -289495 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
3 |
RESSORT DE NOIX DE KICK ORIGINE PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO -288673 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/3/img/66633.jpg)
4 |
NOIX DE KICK SCOOT ORIGINE PIAGGIO 50 2T ET 4T FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA LX, PRIMAVERA/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -483537 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/7/img/68967.jpg)
5 |
AXE KICK ORIGINE PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -831458 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
6 |
RONDELLE AXE DE KICK (16,3X23,8) ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -433987 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/0/img/66470.jpg)
7 |
JOINT DE PROTECTION DE CARTER TRANSMISSION ORIGINE PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT -435251 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
8 |
CLIPS/CIRCLIPS (14.6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006416 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/7/img/66407.jpg)
10 |
LANCEUR/RENVOI DE DEMARREUR ORIGINE PIAGGIO 100 ZIP, FLY, LIBERTY 4T 2006>, 125 TYPHOON 2T, HEXAGON 2T, SKIPPER 2T 1998>2005/GILERA 125 RUNNER 2T 1998>2005/APRILIA 100 SCARABEO 4T 2001> -431321 Plus d'informationsQuantité requise : 1 |
||||||
11 |
224962 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/8/img/70958.jpg)
12 |
DEMARREUR ORIGINE PIAGGIO 100 ZIP 4T 2006>, LIBERTY 4T 2011>2014, FLY 4T 2006>2014/GILERA 180 RUNNER 2T 1998>2005/APRILIA 100 SCARABEO 4T 2001>2012 -96928R Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
969347 - GROUPE CABLES Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
216984 - PASSE CABLES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
15 |
VIS CRUCIFORME (4X6) ORIGINE PIAGGIO COMMUN A LA GAMME -018644 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
16 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/8/img/66168.jpg)
18 |
KICK DE DEMARRAGE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -286214 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/5/img/66185.jpg)
19 |
CLIPS/CIRCLIPS KICK ORIGINE PIAGGIO COMMUN A LA GAMME -288041 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
KICK DE DEMARRAGE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -286214 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/9/img/66169.jpg)
21 |
PROTECTION/CAOUTCHOUC DE KICK ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -286217 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
286219 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
23 |
BAGUE AXE DE KICK ORIGINE PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER -286209 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
24 |
RONDELLE (4,2X7,6X0,9) ORIGINE PIAGGIO COMMUN A LA GAMME -016404 Plus d'informationsQuantité requise : 1 |
