Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

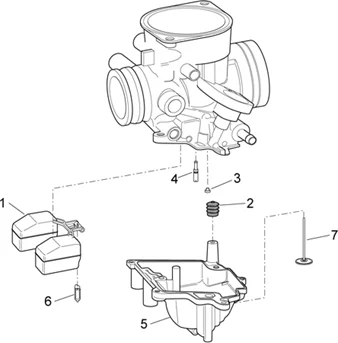

Moteur : 29.20 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/620/Scarabeo_100_4T_E3_2006-2009_29.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/0/img/68780.jpg)
1 |
FLOTTEUR ORIGINE PIAGGIO 50 FLY, VESPA LX, LIBERTY, ZIP 4T -828832- Plus d'informationsQuantité requise : 1 |
||||||
2 |
828839 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
CM142103 - GICLEUR PRINCIPAL 78 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
CM142303 - GICLEUR RALENTI Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM142802 - CUVE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM142806 - BAC COMPLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
6 |
POINTEAU ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 4T ET MAXISCOOTER 125 CC -CM147102 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/0/9/0/img/96090.jpg)
7 |
TIGE DE POMPE DE REPRISE ORIGINE PIAGGIO 50 FLY 4T, VESPA LX 4T, PRIMAVERA, SPRINT -CM151801- Plus d'informationsQuantité requise : 1 |
