Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

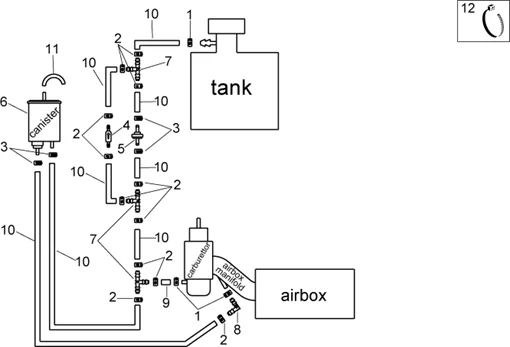

Chassis : 28.47 SYS.RÉCUP.VAP.ESS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/620/Scarabeo_100_4T_E3_2006-2009_28.47.PNG)
1 |
AP8102377 - COLLIER Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
2 |
COLIIER DURITE (D15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102159 Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
3 |
AP8102239 - COLLIER CLIC Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
AP8104251 - SOUPAPE DE RETENUE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
856161 - VOLET Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1B0045715 - CANISTER Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8144303 - "RACCORD EN ""T""" Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
856082 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
856062 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
856063 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/3/img/71423.jpg)
11 |
DURITE ORIGINE PIAGGIO 125-150-200 SCARABEO ROTAX 1999>2004 -AP8120956 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8141228 - COLLIER Plus d'informationsQuantité requise : 1 |
