Eclatés de véhicule - MOTO GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

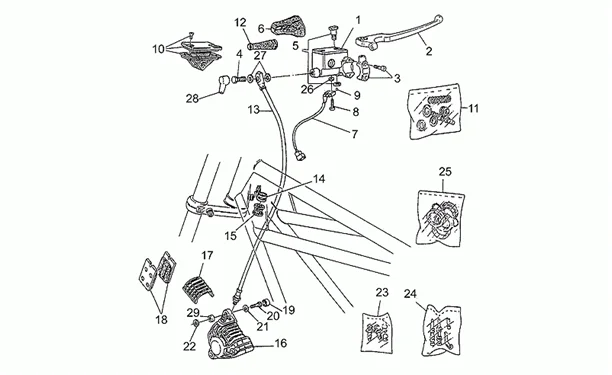

Chassis : 33.18 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.18.PNG)
1 |
GU28660178 - POMPE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8113203 - CAVALIER LEVIER FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU95990028 - VIS TUYAU HUILE * Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU27604815 - PIVOT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU27663615 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU98200214 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU92295708 - BILLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU27661115 - COUVERCLE POMPE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/6/2/img/130262.jpg)
11 |
KIT REVISION MAITRE CYLINDRE DE FREIN AVANT ORIGINE PIAGGIO MOTO-GUZZI 1000 LE-MANS, STRADA, V10, DAYTONA, 1100 CALIFORNIA -GU28659378- Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU17658460 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU17658260 - BAGUE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU28653001 - ETRIER AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/5/4/img/130254.JPG)
18 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO CALIFORNIA, S, SP MOTO GUZZI -GU28654601- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
21 |
RONDELLE AJUSTEMENT (10.5X18X0.8) ORIGINE MOTO GUZZI -GU95129180- Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU95100332 - RONDELLE D'APPUI 0,5 MM Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU95100333 - RONDELLE D'APPUI 0,8 MM Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
GU17659260 - PURGE+CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/7/3/img/129273.jpg)
24 |
KIT PIVOTS+RESSORTS ETRIER DE FREIN ORIGINE PIAGGIO MOTO-GUZZI 1000 LE-MANS, SP, STRADA, 850 T3, 1100 CALIFORNIA -GU14659100- Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
KIT REVISION ETRIER DE FREIN ORIGINE PIAGGIO MOTO-GUZZI 850 T3, T5, 1000 LE-MANS, STRADA, 1000-1000 CALIFORNIA -GU14659000- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
27 |
RONDELLE DURITE FREIN (10X1.5X1) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU25656100- Plus d'informationsQuantité requise : 2 |
||||||
|
28 |
GU39663801 - CAPUCHON Plus d'informationsQuantité requise : 1 |
