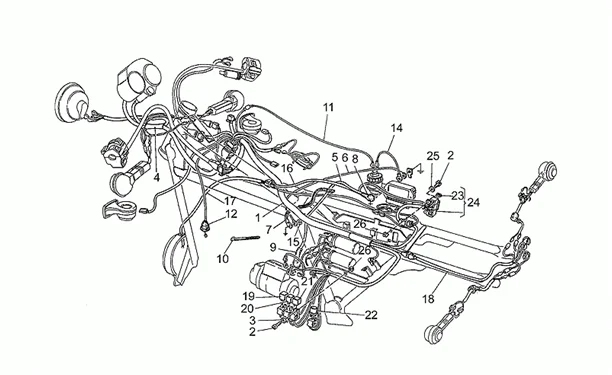

Chassis : 33.13 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.13.PNG)
3 |
GU95004205 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU28747960 - FILS DE MASSE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU23707100 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU19707100 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU14609650 - COLLIER 3,6X20,6 Plus d'informationsQuantité requise : 12 |
||||||
|
12 |
GU12717600 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU18759550 - FILS DE MASSE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU92630106 - ECROU M6X1 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU29726450 - CABLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
GU29725850 - FAISCEAU PRINCIPAL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/8/img/73458.JPG)
21 |
RELAIS 5 FICHES 12V 40A-15A ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
22 |
CENTRALE CLIGNOTANT (POUR LAMPES 21W) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU17750520- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
23 |
FUSIBLE PLAT ENFICHABLE STANDARD 15A ORIGINE PIAGGIO COMMUN A LA GAMME -290860- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
25 |
RONDELLE PLATE (5.25X14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95100059- Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
GU92660501 - ECROU EN CAGE Plus d'informationsQuantité requise : 4 |
