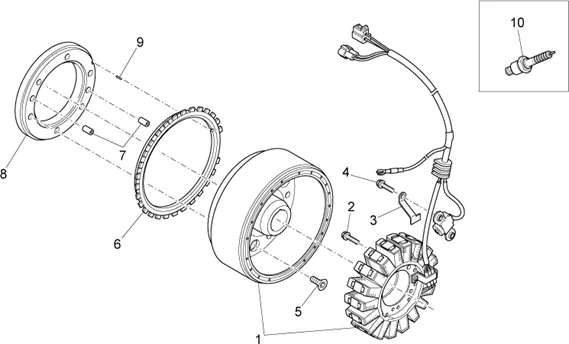

Moteur : 29.53 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/627/RXV_450_Pikes_Peak_2009_29.53.PNG)
1 |
855680 - VOLANT MAGNETIQUE COMPL * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/6/0/img/96560.jpg)
1 |
VOLANT MAGNETIQUE COMPLET ORIGINE PIAGGIO 450-550 RXV/SXV APRILIA OFF-ROAD 2006>2011 -855181 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
2 |
VIS BRIDE TH (5X0,8 L.28) ORIGINE PIAGGIO COMMUN A LA GAMME -855799 Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
855489 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
4 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152272 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/0/4/img/97804.jpg)
5 |
VIS BTR TETE FRAISEE (6X18) ORIGINE PIAGGIO COMMUN A LA GAMME -AP9150401 Plus d'informationsQuantité requise : 6 |
||||||
|
6 |
AP9150205 - RUOTA FONICA * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/9/1/img/97791.jpg)
7 |
GOUPILLE (5X8) ROUE PHONIQUE ALLUMAGE ORIGINE PIAGGIO APRILIA 450-550 SXV, RXV -AP9150380 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP9150204 - ANELLO ESTERNO PER RUO Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8121451 - GOUJON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
10 |
BOUGIE CR8EKB ORIGINE PIAGGIO 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO -639687 Plus d'informationsQuantité requise : 1 |
