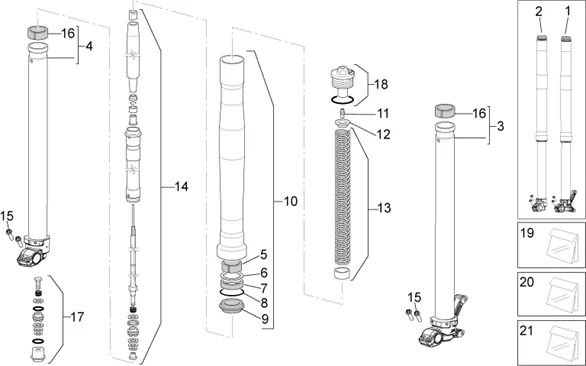

Chassis : 28.05 FOURCHE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/627/RXV_450_Pikes_Peak_2009_28.05.PNG)
1 |
851291 - ASSIEME GAMBA FORCELLA DX Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
851290 - ASSIEME GAMBA FORCELLA DX Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP9100847 - STELO + PORTARUOTA SX Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP9100848 - STELO + PORTARUOTA DX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/4/img/72614.jpg)
5 |
DOUILLE DE FOURCHE SUPERIEURE (D45 H15) ORIGINE PIAGGIO MOTO-GUZZI 1200 STELVIO/APRILIA 450-550 SXV, RXV -AP9100855 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP8163094 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/6/img/72026.jpg)
7 |
JOINT SPI (45X58X11) DE FOURCHE ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, BREVA, 1400 CALIFORNIA, 940 BELLAGIO/APRILIA 650 PEGASO -AP8163095 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
BAGUE DE BUTEE DE FOURCHE (D63) ORIGINE PIAGGIO - AP8163096 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/8/img/72028.jpg)
9 |
PARE-POUSSIERE DE FOURCHE (D 45) ORIGINE MOTO GUZZI COMMUN A LA GAMME -AP8163097 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP9100849 - FODERO COMPLETO Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8163370 - GRANO + OR Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP9100850 - ANELLO PER MOLLA D40 Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP9100851 - KIT MOLLA Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
AP9100852 - POMPANTE COMPLETO Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/5/img/72615.jpg)
16 |
DOUILLE DE FOURCHE INFERIEURE (D45 H20) ORIGINE PIAGGIO MOTO-GUZZI 1200 STELVIO/APRILIA 450-550 SXV, RXV -AP9100856 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
AP9100853 - VALVOLA COMPLETA D45 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
AP9100854 - TAPPO COMPLETO D45 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
AP9100857 - KIT PARAPOLVERE+PARAOLIO Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
AP9100858 - KIT GUARNIZIONI D.45 Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
AP9100859 - KIT BOCCOLE Plus d'informationsQuantité requise : 1 |
